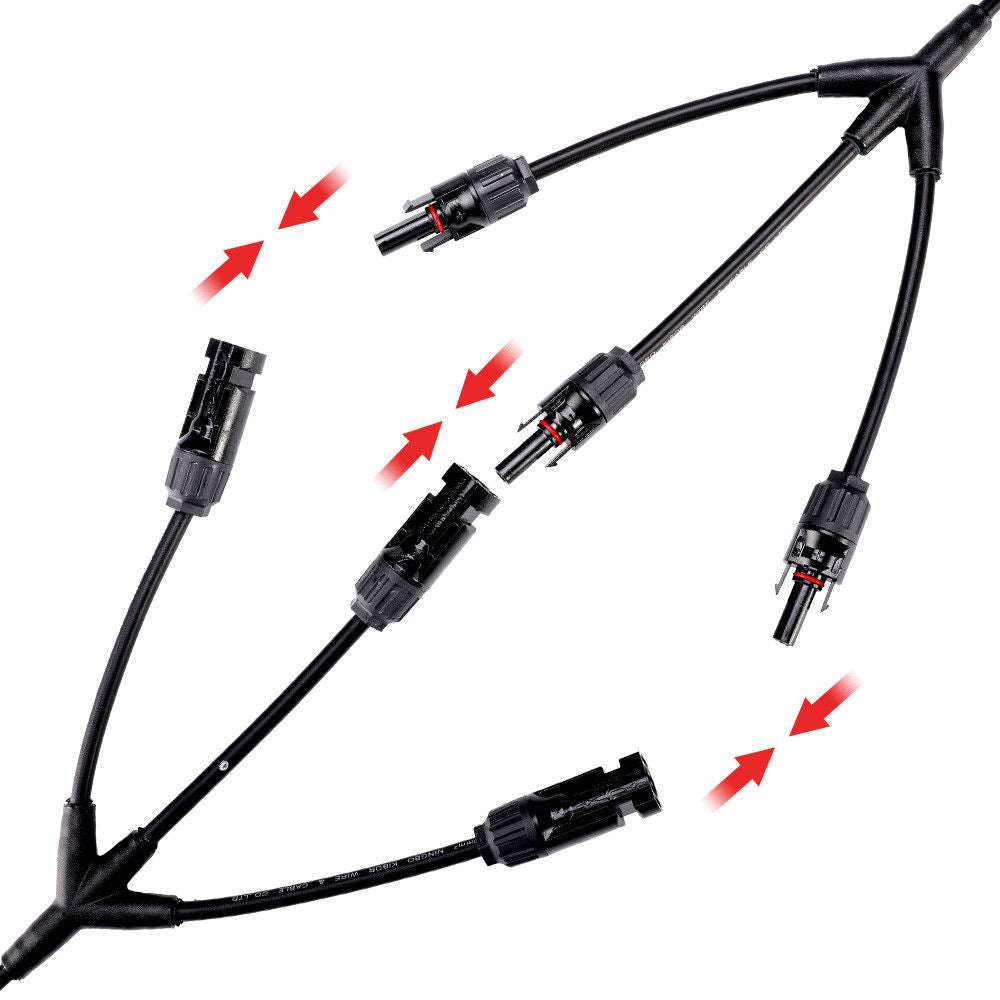

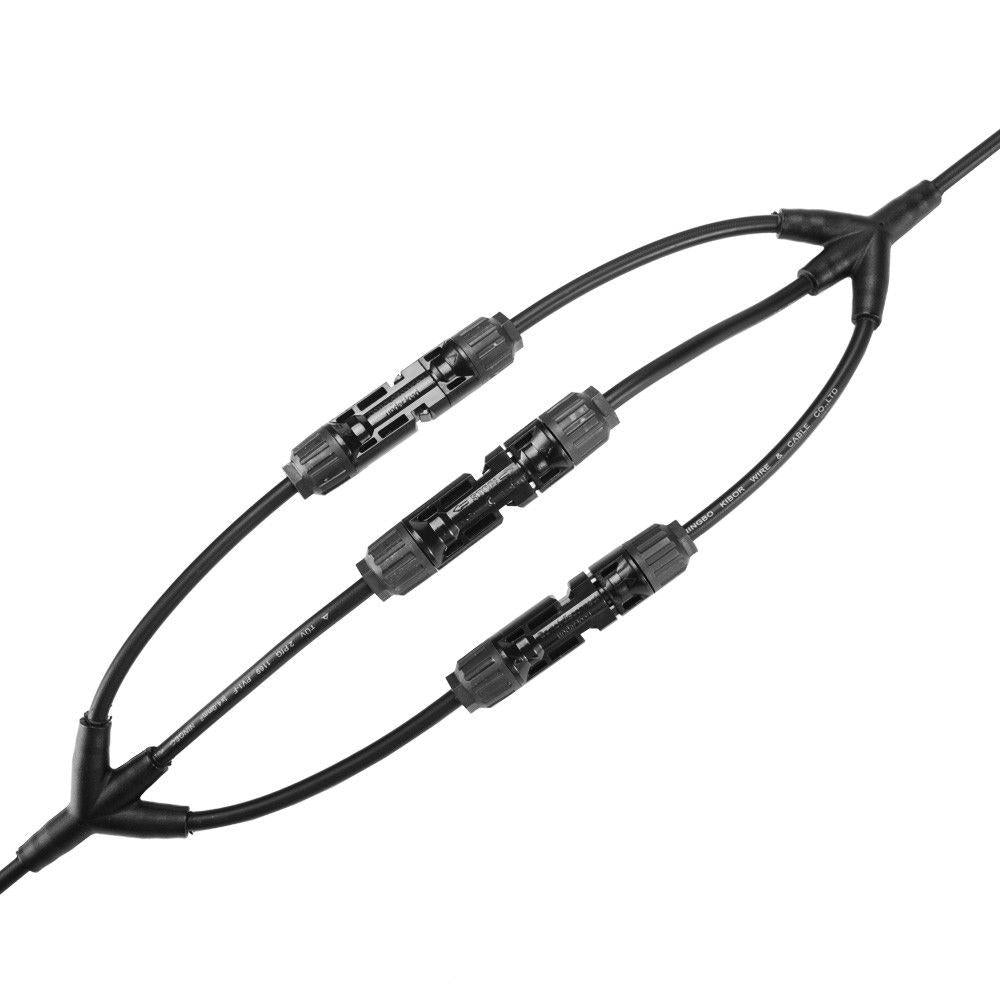

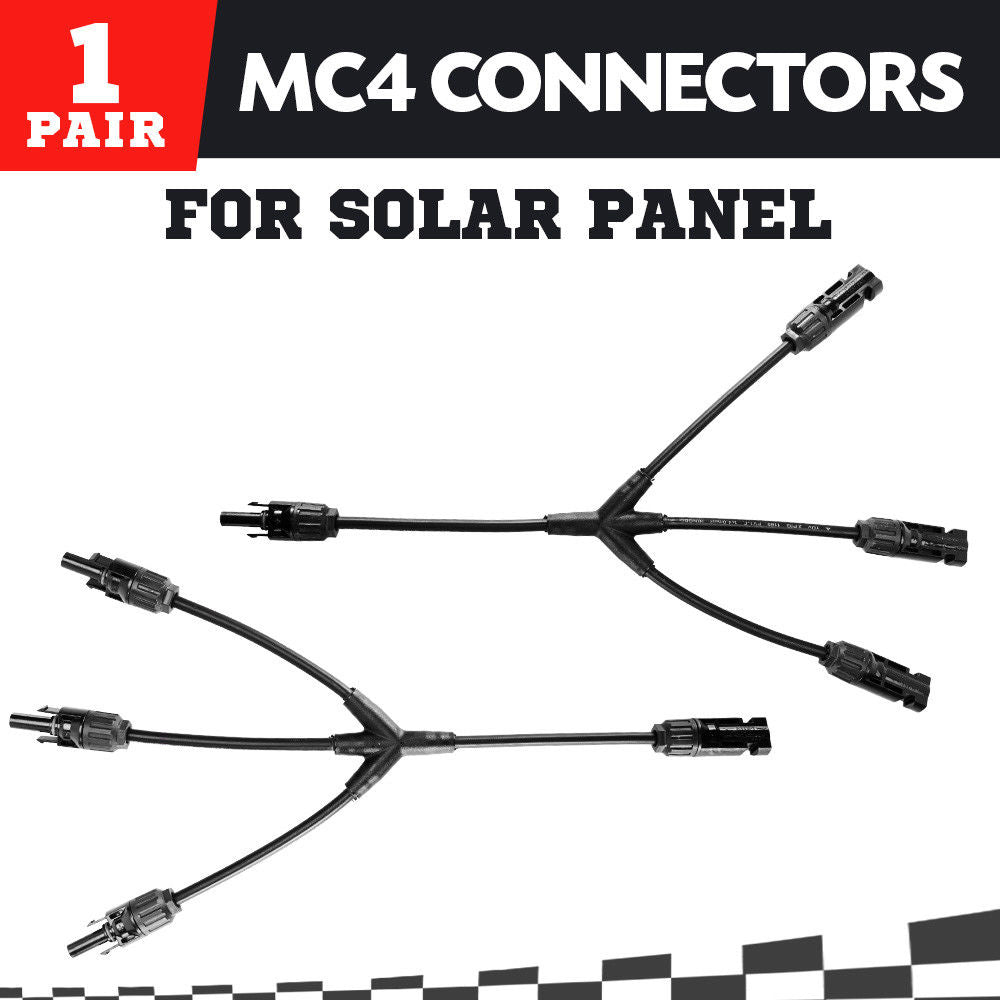

MC4 3 into 1 Connector Cable Pair, PV Solar Panel Connectors

  • SKU: PR4195
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock
$18.99
    DESCRIPTION



    Protection Class:2
    Rated Current:22(2.5 mm),30A(4,6 mm)
    Protection Degree:IP2X,unmated;IP67,mated
    Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
    Compatible with PV cables with different insulation diameters
    Resistance of extra high & low temperature and fireproof
    Load capability with big current and high voltage
    Locking system Snap in

    Specifications
    Rate Voltage: 1000V
    Rated Current: 30A(4mm2,6mm2)
    Waterproof Rate: IP 67
    Test Voltage: 6000V(50Hz)
    Insulation material: PPO
    Contact material Copper: Sliver plated
    Safe Class : 2
    Flame Class: UL94-V0
    Contact resistant of plugg Connectors: <=5 megger
    Insertion force: <=50N

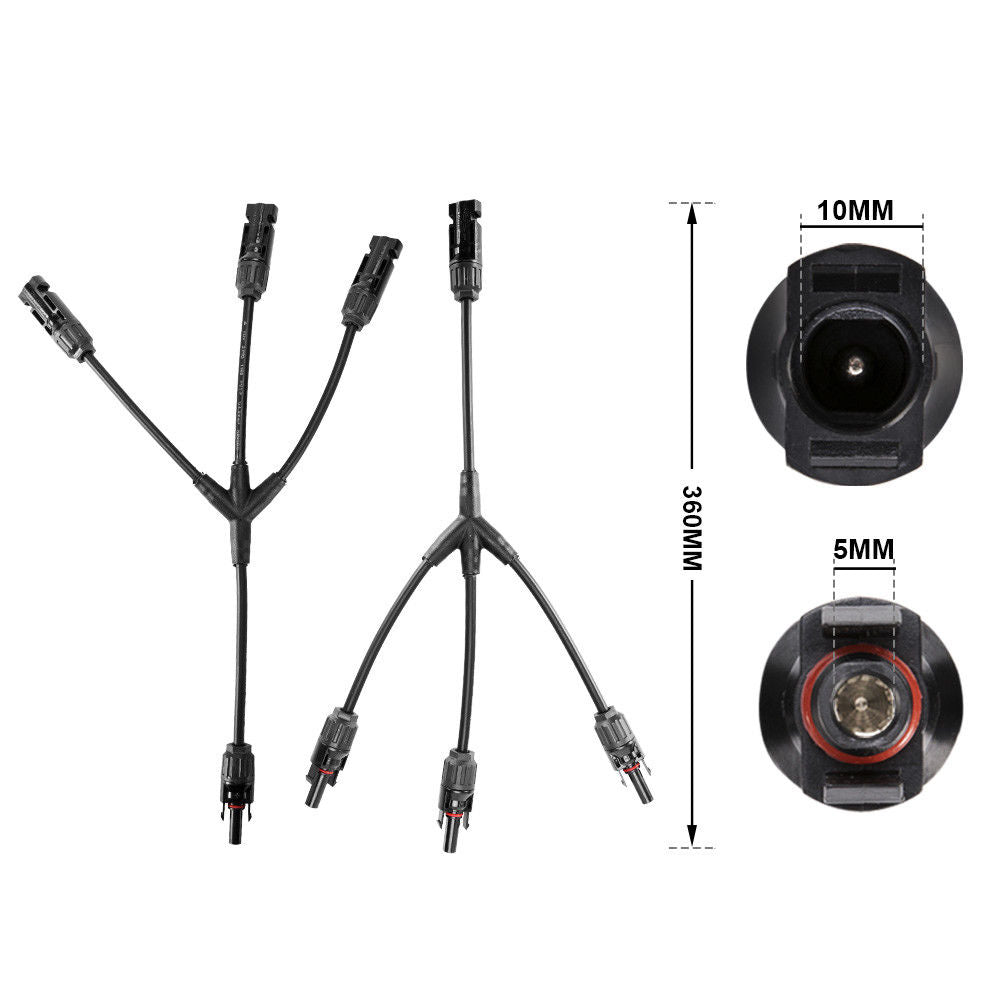

    Diameter of Pin or Socket: 4mm
    Locking System: Snap in
    Suitable cable : 2.5mm2/4mm2/6mm2(AWG14/12/10)

    What's In Box

    1x Male 3Y Branch MC4 Solar Panel cable Connector
    1x Female 3Y Branch MC4 Solar Panel cable Connector
