MC4 Y Branch Connectors Cable Solar Panel Cables Connector MC4 Cable Connector
MC4 Y Branch Connectors Cable Solar Panel Cables Connector MC4 Cable Connector
MC4 Y Branch Connectors Cable Solar Panel Cables Connector MC4 Cable Connector
Sold Out

MC4 Y Branch Connectors Cable Solar Panel Cables Connector MC4 Cable Connector

  • SKU: PR4072
  • Availability: Out of stock
$13.90
    DESCRIPTION

    1 Pair MC4 Y Connector Cable Plug Inline Solar PV Panel IP67 2 connection

    Cable specification: 20A (4mm2) 30A(6mm2)
    Rated Current: 30A
    Rated voltage: 1000VDC
    Contact resistance: <= 2mm ohm
    Waterproof degree: IP67
    Flame class: UL94-VO
    Safety Class: II
    Withdrawal force: >=50N
    Insertion force: <=0N
    Insulation material: PPO + PA
    Connecting system: Crimping connection
    Temperature range: -40C ~ +105C

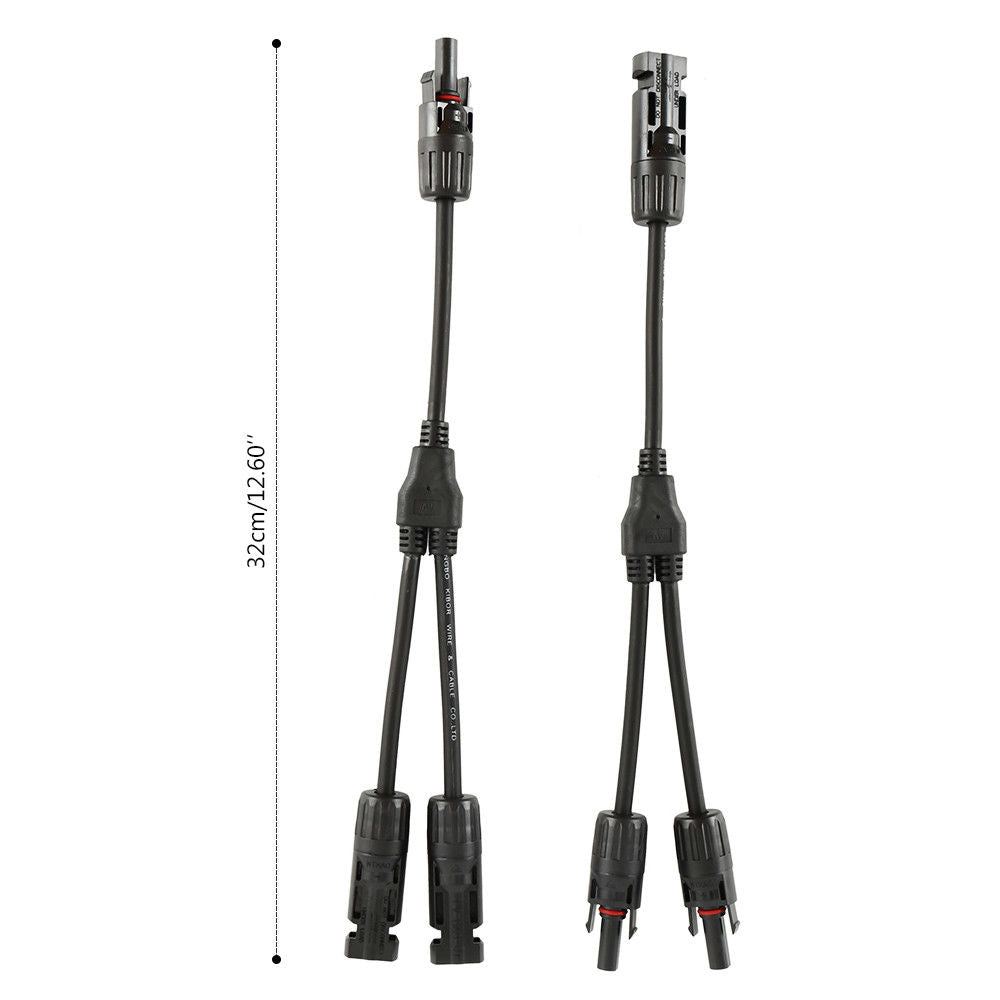

    Cable length: 32cm/12.60in

    Features:

    This Y Style MC4 compatible Solar Cable Connector Set (Part # RX- MC4Y-P) is a perfect solution to parallel connect multiple panels together

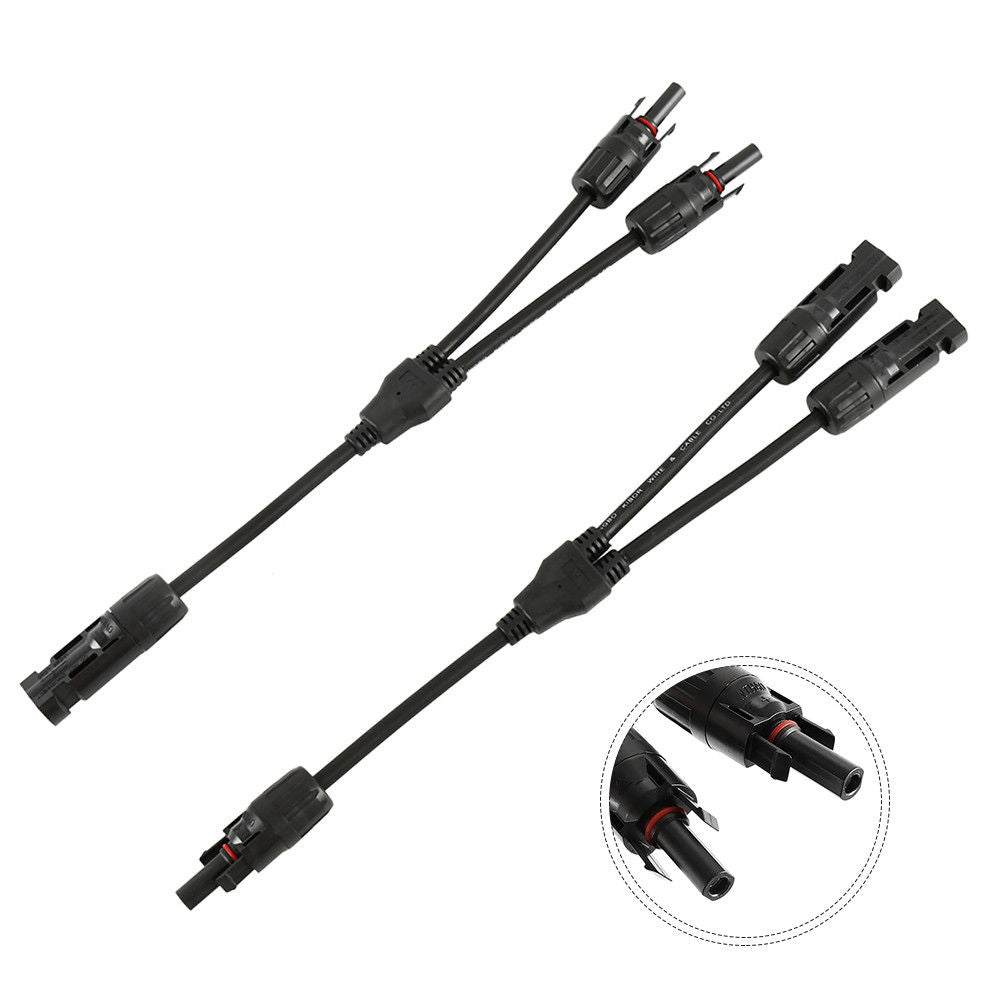

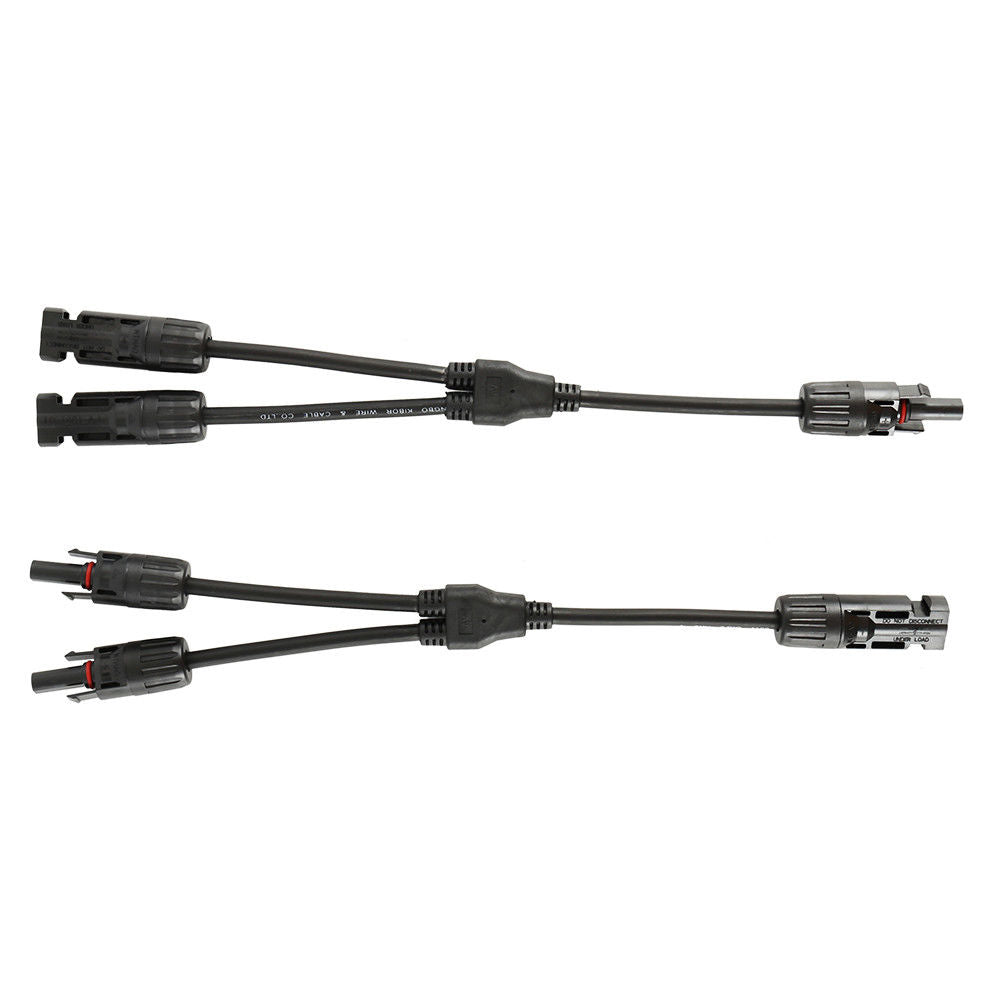

    The Y MC4 Solar Cable Connector Set includes one Y style MC4 cable connector one female to double male (F/M/M) and one Y style MC4 cable connector one male to double female (M/F/F)
    Electron-beam cross-linked compounds UV and ozone resistant
    Hydrolysis resistant
    High temperature resistant, the materials do not melt or flow
    Good cold flexibility
    Long life cycle

    Package included:
    1 Pair of Y Type MC4 Solar Panel cable Connectors (one Male & one female)
