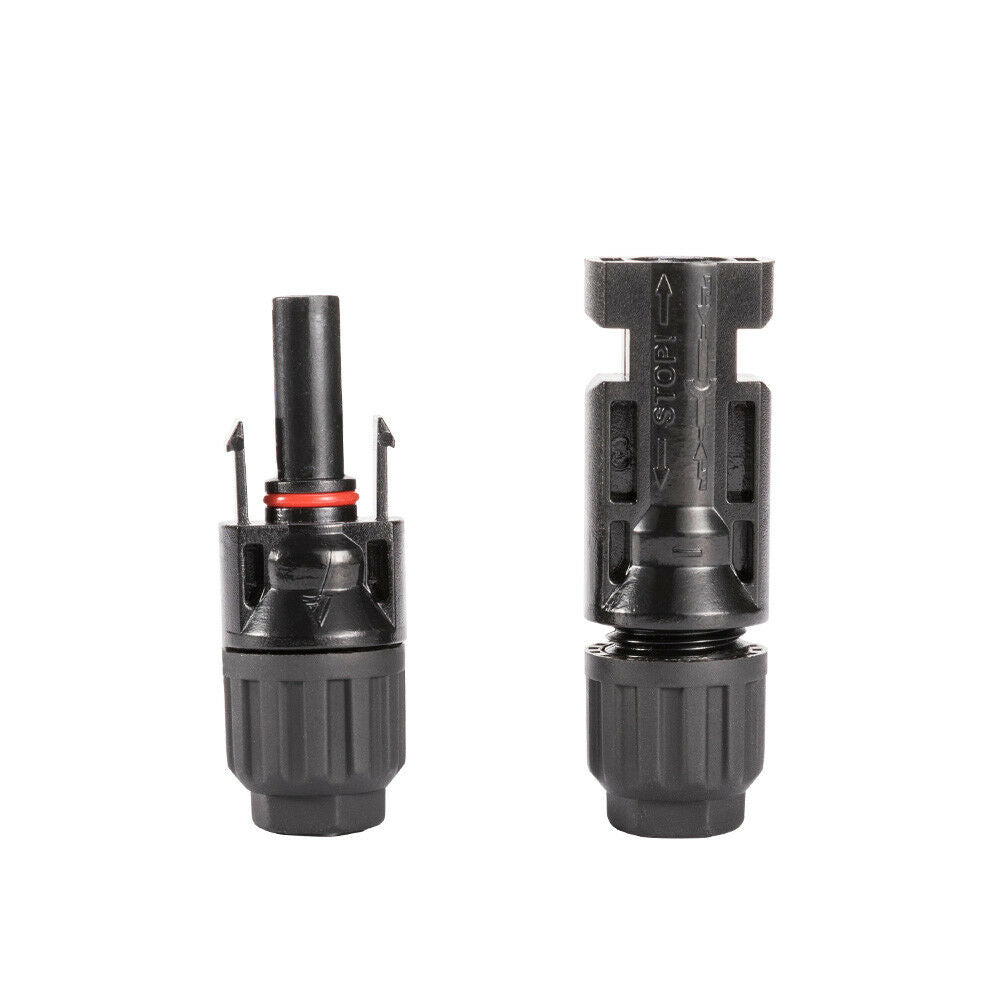

10 Pairs MC4 Connectors Solar Panel 30A Line Plug Socket Male Female PV IP67

Description

Easy installation٬can quick assembly processing and simple removal of plugs without the help of any extra instrument

Feature
100% Brand new and High Quality
Protection Class:2
Compatible with PV cables with different insulation diameters
Locking system Snap in
Resistance of extra high & low temperature and fireproof
High quality UV resistant Protection
Load capability with big current and high voltage
Suitable for Solar Panels, Dual Battery Systems, Caravans etc
IP67 rated waterproof ,dustproof and quakeproof for extreme environment

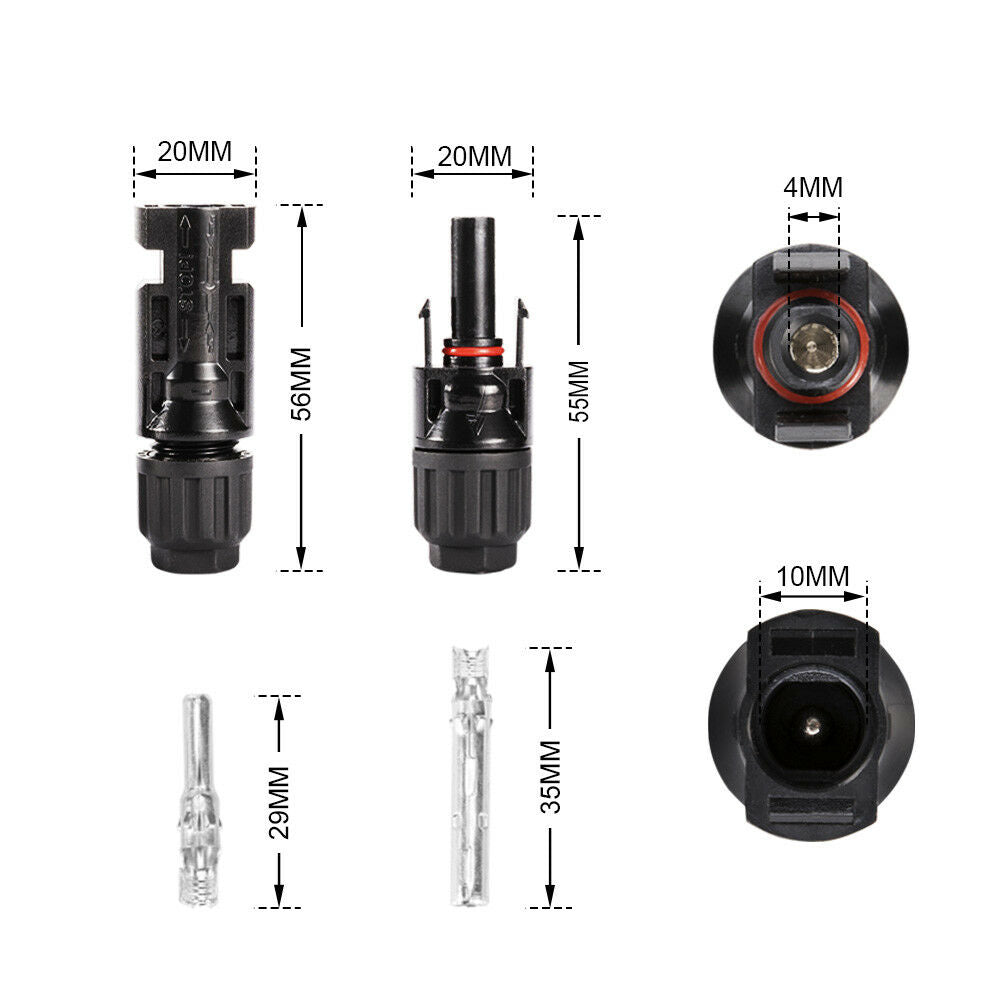

Specification

Rate Voltage: 1000V
Rate Current: 30A
Test Voltage: 6000V(50HZ)
Color: Black
Weight: 200g
Waterproof Rate: IP67
Insulation Material: PPO
Contact Material Copper: Sliver plated
Safe Class : 2
Flame Class: UL94-V0
ContactResistant Of Plugg Connectors: ≤5m Om
Insertion Force: <=50N
Diameter Of Pin Or Socket: 4MM
Locking System: Snap in
Suitable Cable : 2.5mm2/4mm2/6mm2(AWG14/12/10)

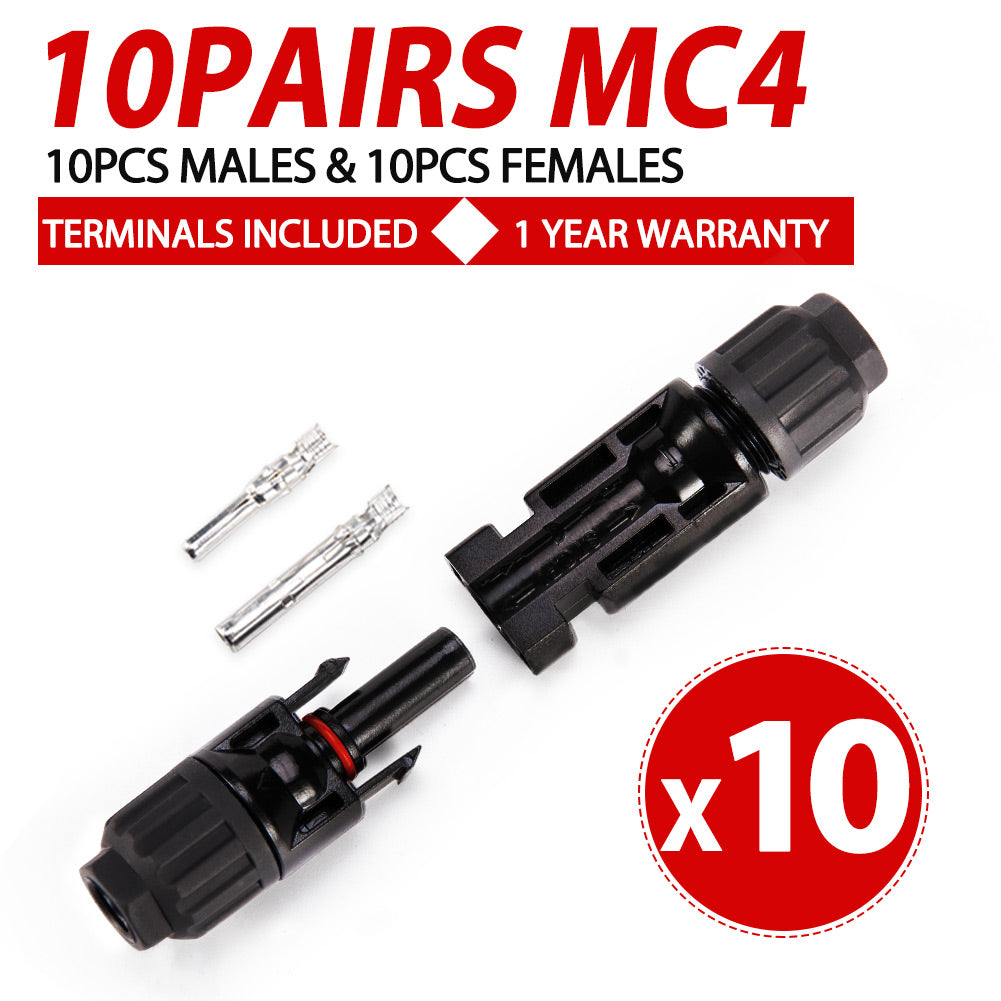

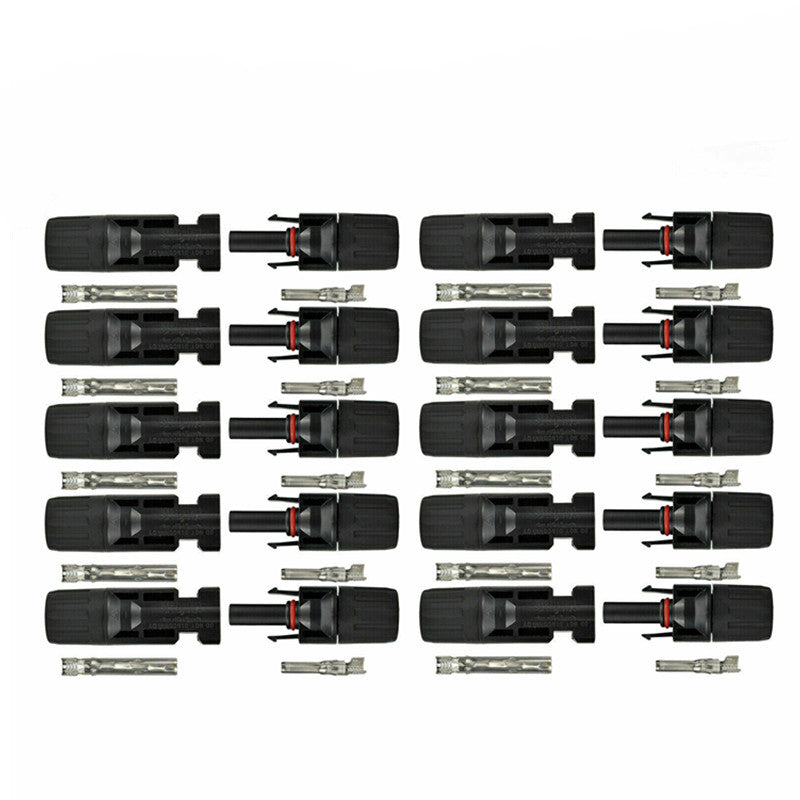

In the Box
10x Male MC4 connectors
10x Female MC4 connectors

10 Pairs MC4 Connectors Solar Panel 30A Line Plug Socket Male Female PV IP67

Product form
Free pickup in our shop(s)

SKU: PR4586

$29.90 Incl. GST

    • Guaranteed secure & safe checkout.

    Description

    Easy installation٬can quick assembly processing and simple removal of plugs without the help of any extra instrument

    Feature
    100% Brand new and High Quality
    Protection Class:2
    Compatible with PV cables with different insulation diameters
    Locking system Snap in
    Resistance of extra high & low temperature and fireproof
    High quality UV resistant Protection
    Load capability with big current and high voltage
    Suitable for Solar Panels, Dual Battery Systems, Caravans etc
    IP67 rated waterproof ,dustproof and quakeproof for extreme environment

    Specification

    Rate Voltage: 1000V
    Rate Current: 30A
    Test Voltage: 6000V(50HZ)
    Color: Black
    Weight: 200g
    Waterproof Rate: IP67
    Insulation Material: PPO
    Contact Material Copper: Sliver plated
    Safe Class : 2
    Flame Class: UL94-V0
    ContactResistant Of Plugg Connectors: ≤5m Om
    Insertion Force: <=50N
    Diameter Of Pin Or Socket: 4MM
    Locking System: Snap in
    Suitable Cable : 2.5mm2/4mm2/6mm2(AWG14/12/10)

    In the Box
    10x Male MC4 connectors
    10x Female MC4 connectors
