Description
30cm Volt Electric Radiator Cooling Thermal Thermo Fan + Mounting Kits 12V 80W
HOW A RADIATOR COOLING FAN WORKS
The engine cooling fan is designed to move air through the radiator when the vehicle is at slower speeds or stopped. This air flow removes heat from the coolant created by the engine using the radiator as a conductor. An engine cooling fan is temperature controlled to only run when needed. All engines have a preferred operating temperature and need to warm up to operate at peak efficiency. Temperatures above normal, even for short periods of time can cause internal engine parts to fail.
Occasionally the fan will be audible after the engine has been shut off, this is normal and is performed to lower engine temperature to acceptable levels. Usually, electric fans will activate shortly after the air conditioner is turned on, this is done to dissipate the extra heat produced in the condenser while the air conditioner is in operation.
Engine cooling fans are temperature controlled to only run when needed. All engines have a preferred operating temperature which require a warm up period to operate at peak efficiency. Temperatures above normal can cause internal engine parts to fail. When cooling fan operation fails it will cause engine coolant to retain heat, forcing the engine to run hot and eventually overheat.
Specification:

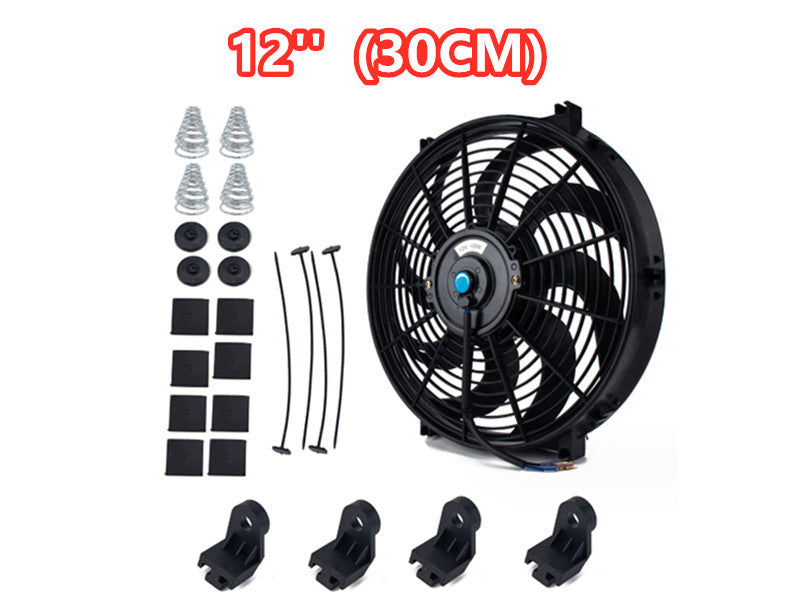

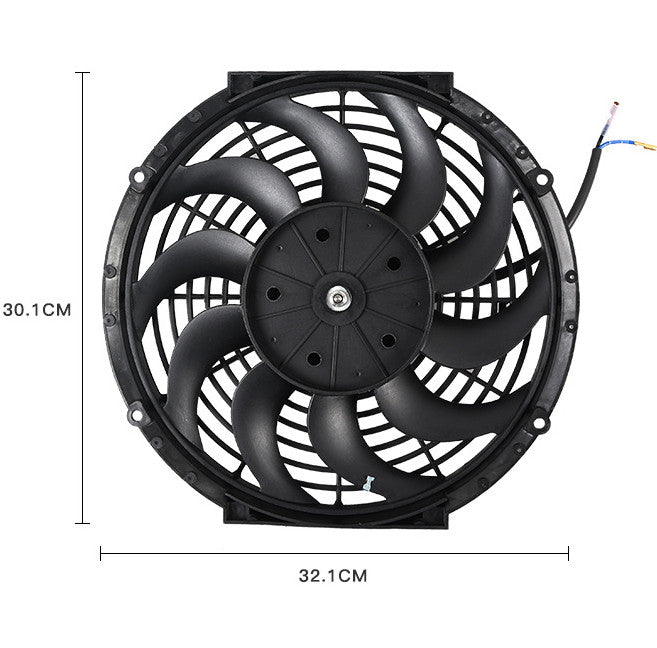

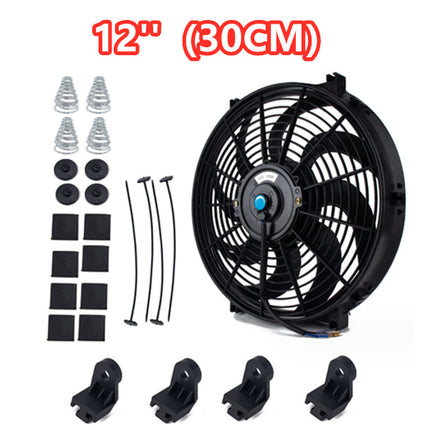

Fan Size: Universal 30cm Fan
Motor: 12v 80w
Air Flow Rate: >1130 CBM/Hr
Speed: 2100 RPM
Note:
This fan can be configured as a puller or pusher, if mounted on the inside it will pull the air through the radiator.
However, the polarity of the wiring can be reversed and the blades can be turned so it becomes a pusher mounted on the outside to push air through the radiator

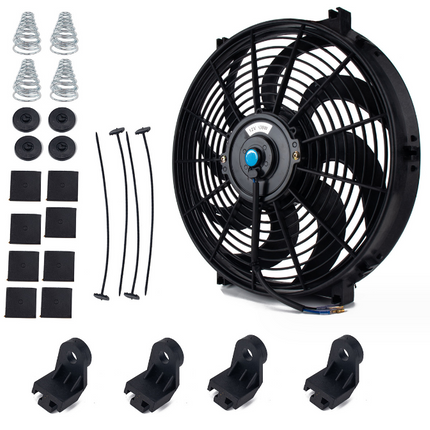

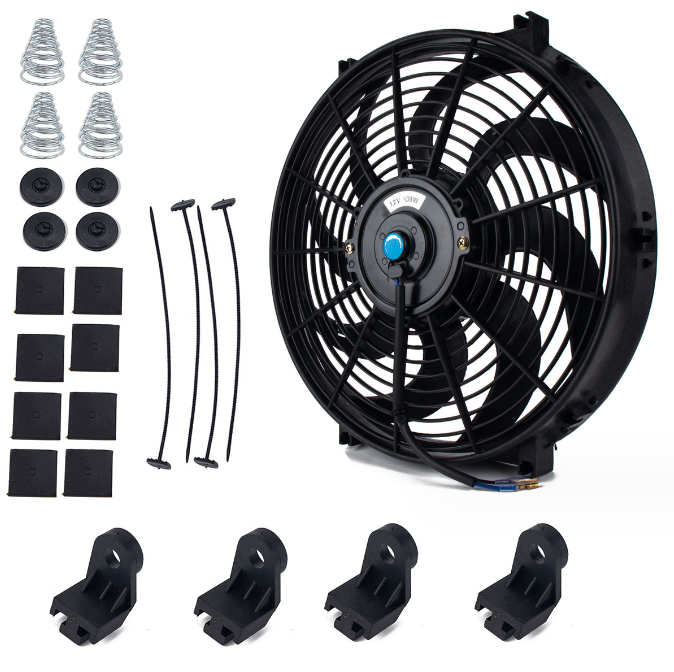

Package Included:
1x Fan
A set of mounting kits
