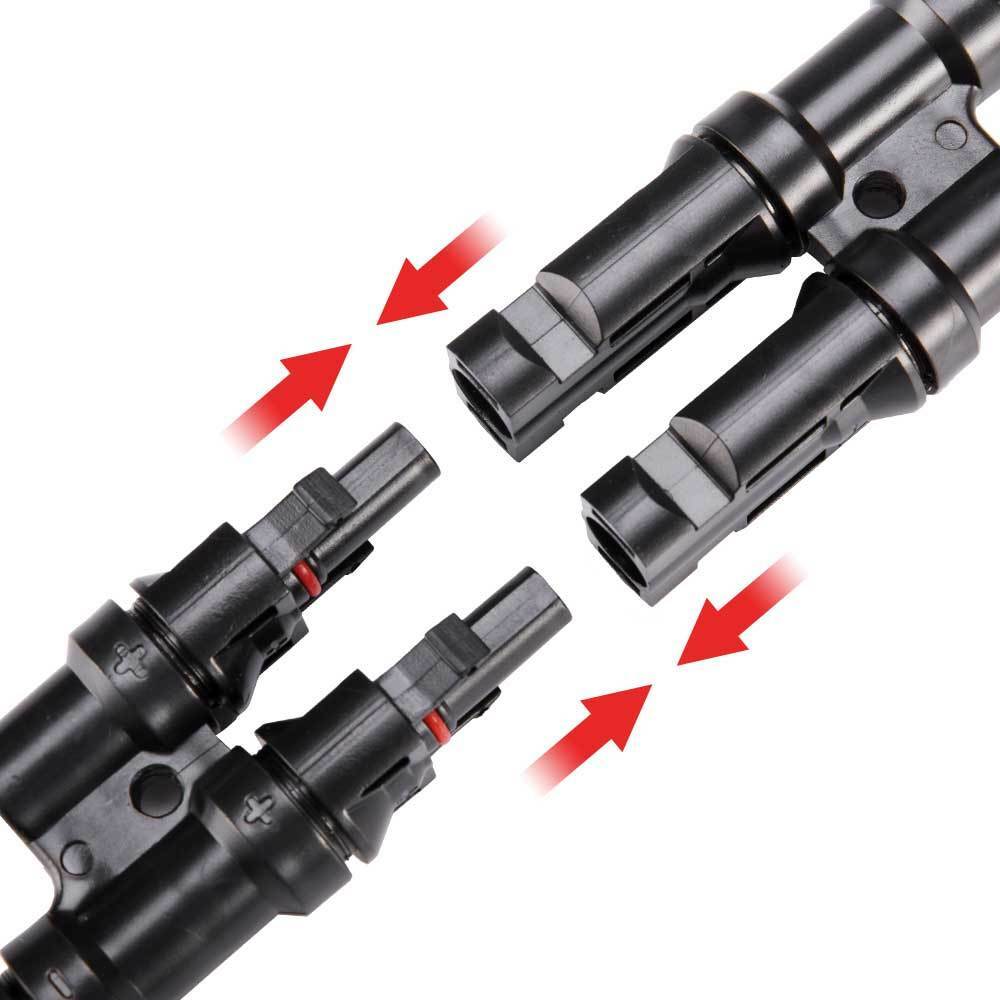

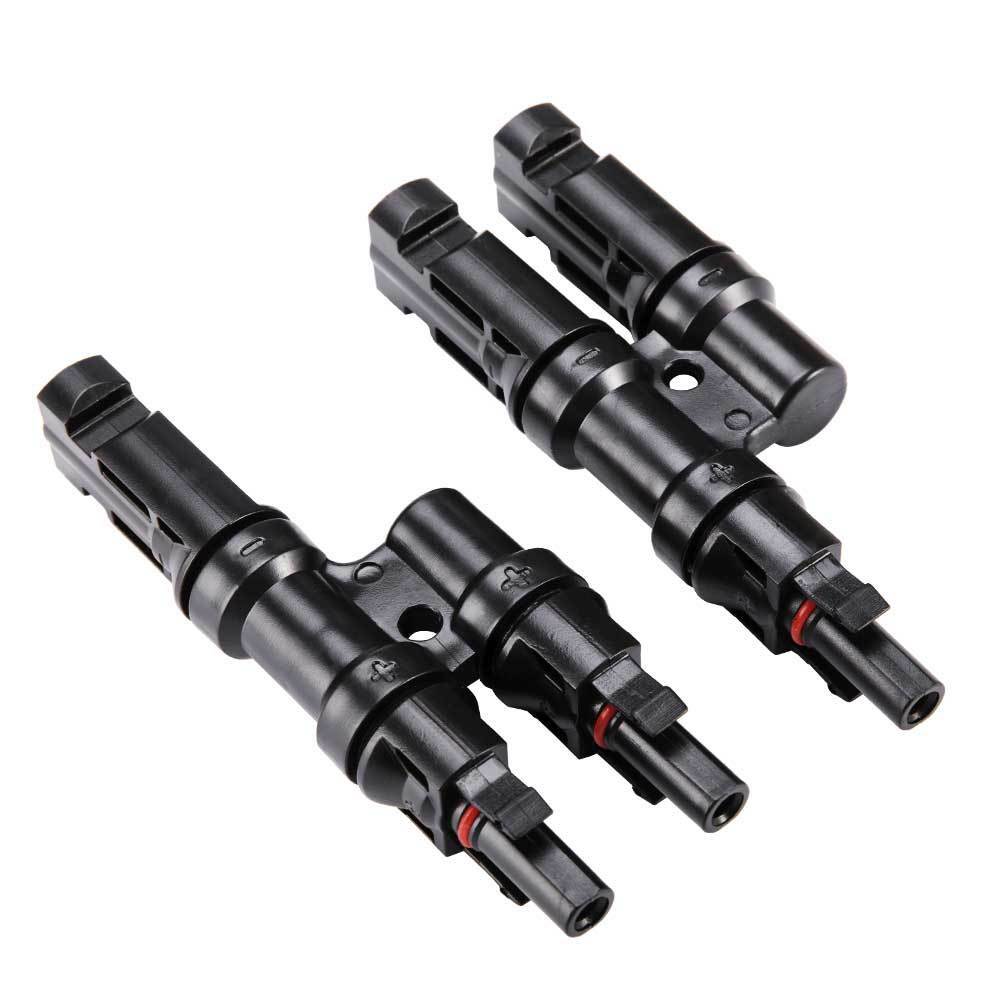

2 To 1 T Branch Cable Connectors PV Solar Panel Connector Male and Female

Description

2 To 1 T Branch Cable Connectors Solar PV Panel Connector Male and Female

ITEM DESCRIPTION
Protection Class:2
Rated Current:22(2.5 mm),30A(4,6 mm)
Protection Degree:IP2X,unmated;IP67,mated
Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
Compatible with PV cables with different insulation diameters
Resistance of extra high & low temperature and fireproof
Load capability with big current and high voltage
Locking system Snap in

SPECIFICATIONS
Rate Voltage: 1000V
Rated Current: 30A(4mm2,6mm2)
Waterproof Rate: IP 67
Test Voltage: 6KV(50Hz)
Insulation Material: PPO
Contact Material Copper: Sliver plated
Safe Class : 2
Flame Class: UL94-V0
Contact Resistant Of Plugg Connectors: ≤5mΩ
Insertion Force: ≤50N

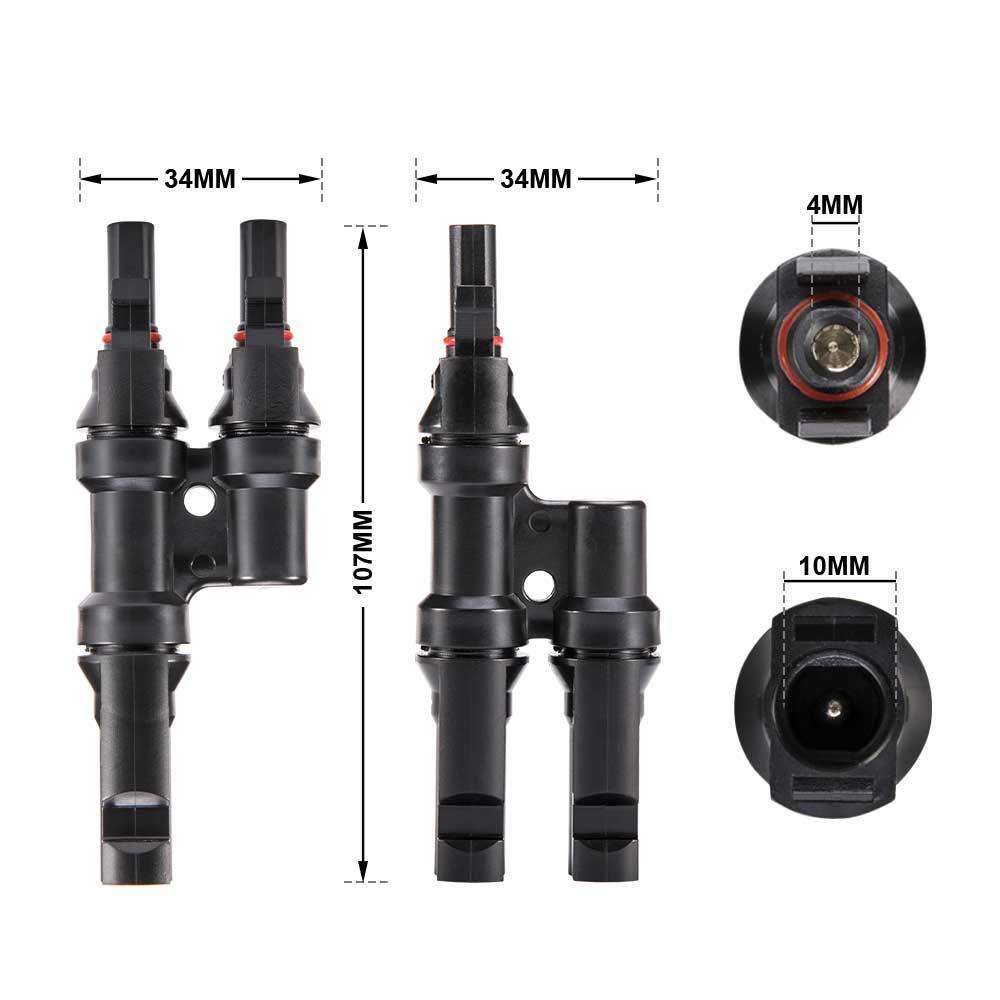

Diameter Of Pin Or Socket: 4mm
Locking System: Snap in
Suitable Cable : 2.5mm2/4mm2/6mm2(AWG14/12/10)


What's In Box
1x female to double male (F/M/M)
1x male to double female (M/F/F)

2 To 1 T Branch Cable Connectors PV Solar Panel Connector Male and Female

Product form

SKU: PR7562

$13.99 Incl. GST

    • Guaranteed secure & safe checkout.

    Description

    2 To 1 T Branch Cable Connectors Solar PV Panel Connector Male and Female

    ITEM DESCRIPTION
    Protection Class:2
    Rated Current:22(2.5 mm),30A(4,6 mm)
    Protection Degree:IP2X,unmated;IP67,mated
    Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
    Compatible with PV cables with different insulation diameters
    Resistance of extra high & low temperature and fireproof
    Load capability with big current and high voltage
    Locking system Snap in

    SPECIFICATIONS
    Rate Voltage: 1000V
    Rated Current: 30A(4mm2,6mm2)
    Waterproof Rate: IP 67
    Test Voltage: 6KV(50Hz)
    Insulation Material: PPO
    Contact Material Copper: Sliver plated
    Safe Class : 2
    Flame Class: UL94-V0
    Contact Resistant Of Plugg Connectors: ≤5mΩ
    Insertion Force: ≤50N
    Diameter Of Pin Or Socket: 4mm
    Locking System: Snap in
    Suitable Cable : 2.5mm2/4mm2/6mm2(AWG14/12/10)


    What's In Box
    1x female to double male (F/M/M)
    1x male to double female (M/F/F)
