2x Bus Bar Terminal Block

Description

2x 48V Power Distribution Block Bus Bar with 2 x M6 Terminal Studs Terminal Studs and 12 x M4 Terminal Screws, Bus Bar Terminal Block with Cover for Marine Car RV Boat Truck Red and Black

Battery BusBar Junction for Car
Max operating voltage: 48V DC 300VAC
Max continuous amperage: 150A AC/200A DC
Terminal Studs: 2 x M6 (1/4")
Terminal Screws: 12 x M4 (#8)

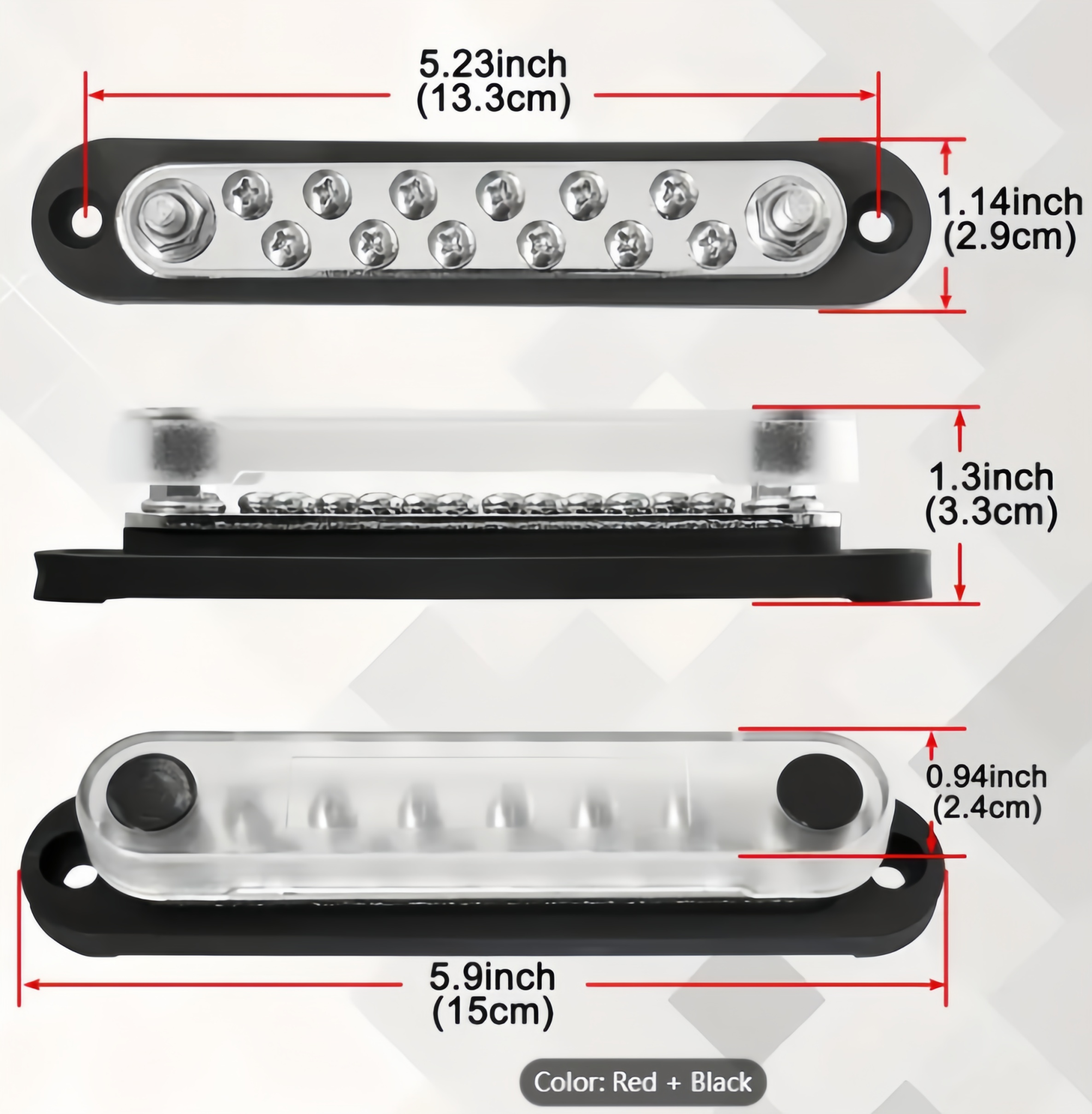

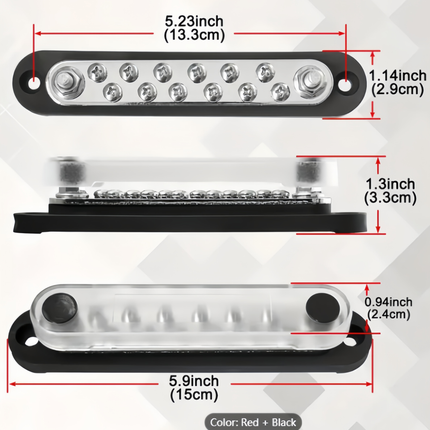

Overall Dimension: 150mm x 28mm x 35mm (LxWxH)

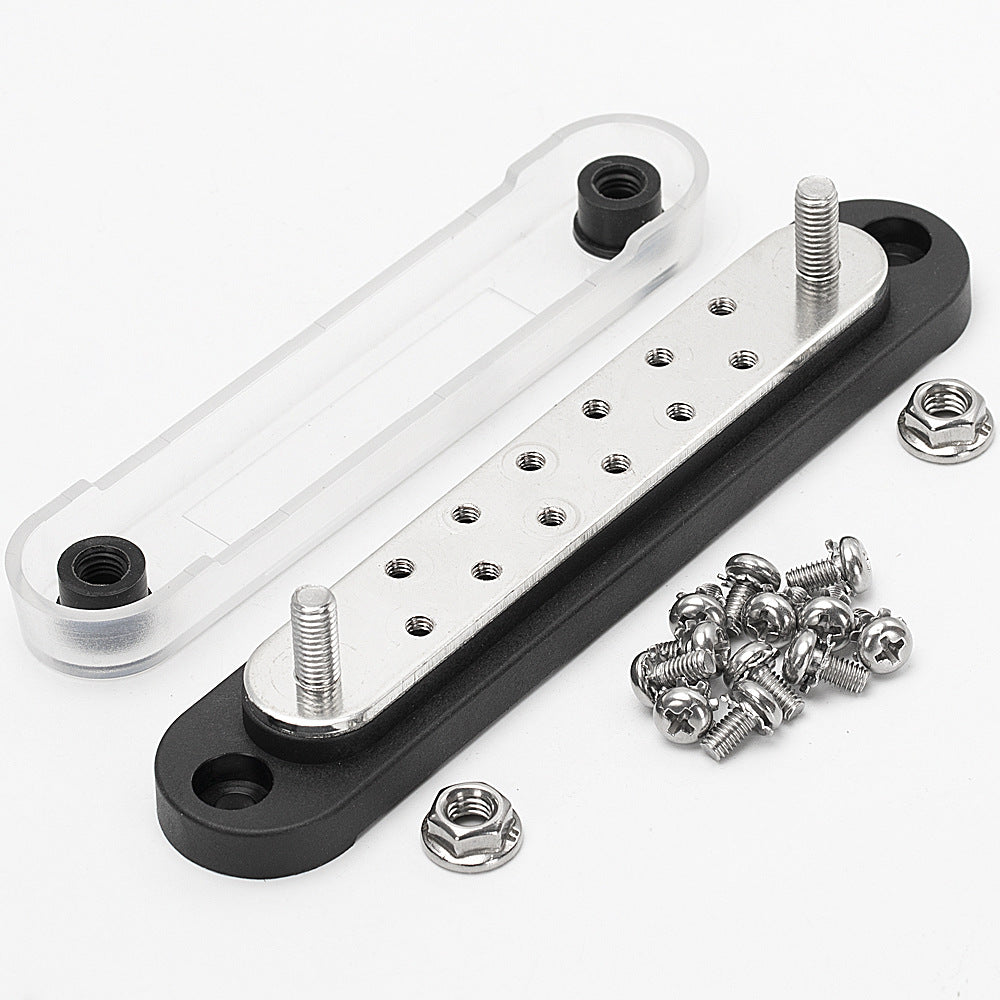

Terminals & Rating: Each bus bar battery terminal block includes - 2 x M6 (1/4")terminal studs, 12 x M4 (#8) terminal screws.
Round corner base design makes the battery terminal block unique and special, looks more extraordinary compared with other busbars.
More Open Area Design Cover: The cover of this power bus bar will allow 180° wire lug installation and can meet variety kinds of installat methods of end terminals.
Application: This marine power distribution block uses copper plates and stainless steel terminals as conductors, which enables the junction block to work in extreme environment, suitable for automotive, car, marine, boat, etc.

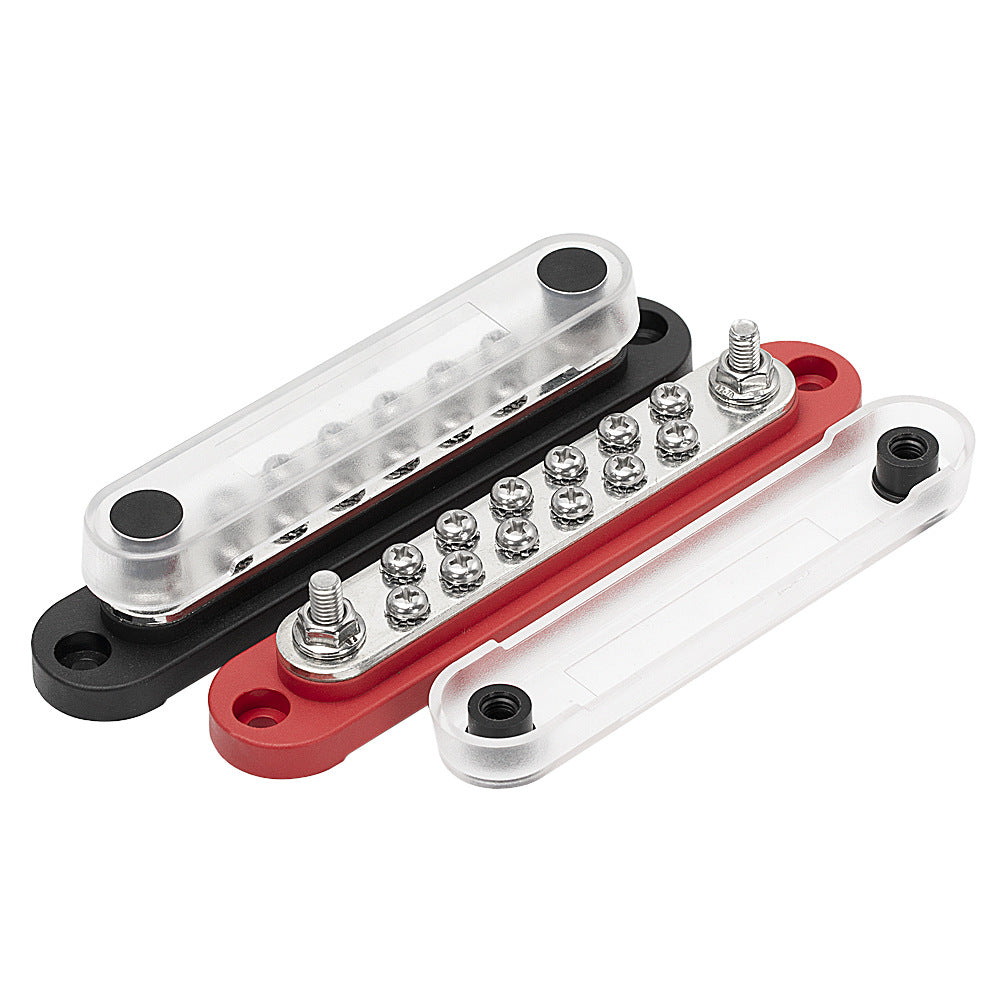

Package Includes:
1 x Red Bus Bar
1 x Black Bus Bar

2x Bus Bar Terminal Block

Product form

Out of stock

SKU: GZJ2935

$49.00  $35.99 Incl. GST

    • Guaranteed secure & safe checkout.

    Description

    2x 48V Power Distribution Block Bus Bar with 2 x M6 Terminal Studs Terminal Studs and 12 x M4 Terminal Screws, Bus Bar Terminal Block with Cover for Marine Car RV Boat Truck Red and Black

    Battery BusBar Junction for Car
    Max operating voltage: 48V DC 300VAC
    Max continuous amperage: 150A AC/200A DC
    Terminal Studs: 2 x M6 (1/4")
    Terminal Screws: 12 x M4 (#8)
    Overall Dimension: 150mm x 28mm x 35mm (LxWxH)
    Terminals & Rating: Each bus bar battery terminal block includes - 2 x M6 (1/4")terminal studs, 12 x M4 (#8) terminal screws.
    Round corner base design makes the battery terminal block unique and special, looks more extraordinary compared with other busbars.
    More Open Area Design Cover: The cover of this power bus bar will allow 180° wire lug installation and can meet variety kinds of installat methods of end terminals.
    Application: This marine power distribution block uses copper plates and stainless steel terminals as conductors, which enables the junction block to work in extreme environment, suitable for automotive, car, marine, boat, etc.

    Package Includes:
    1 x Red Bus Bar
    1 x Black Bus Bar
