Description

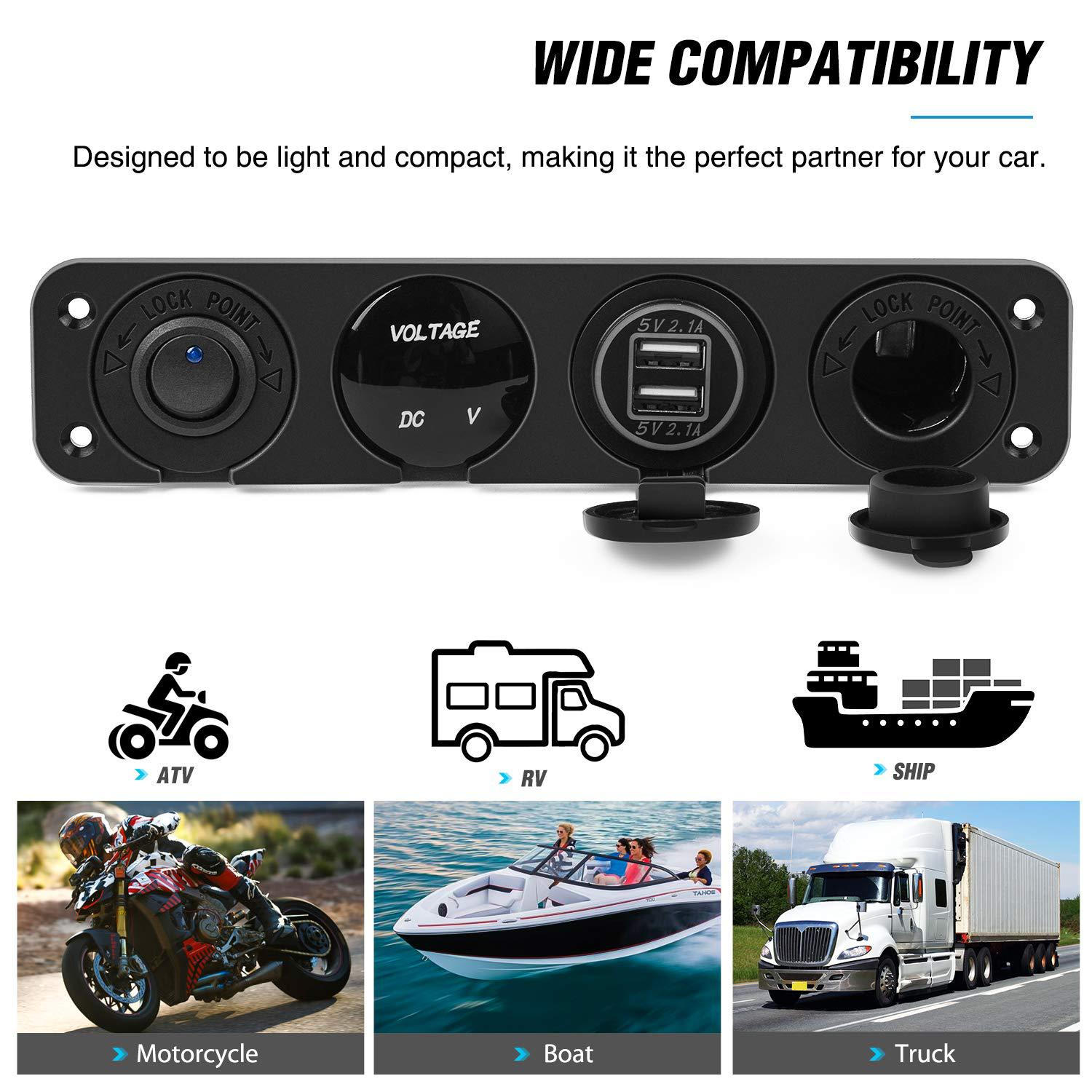

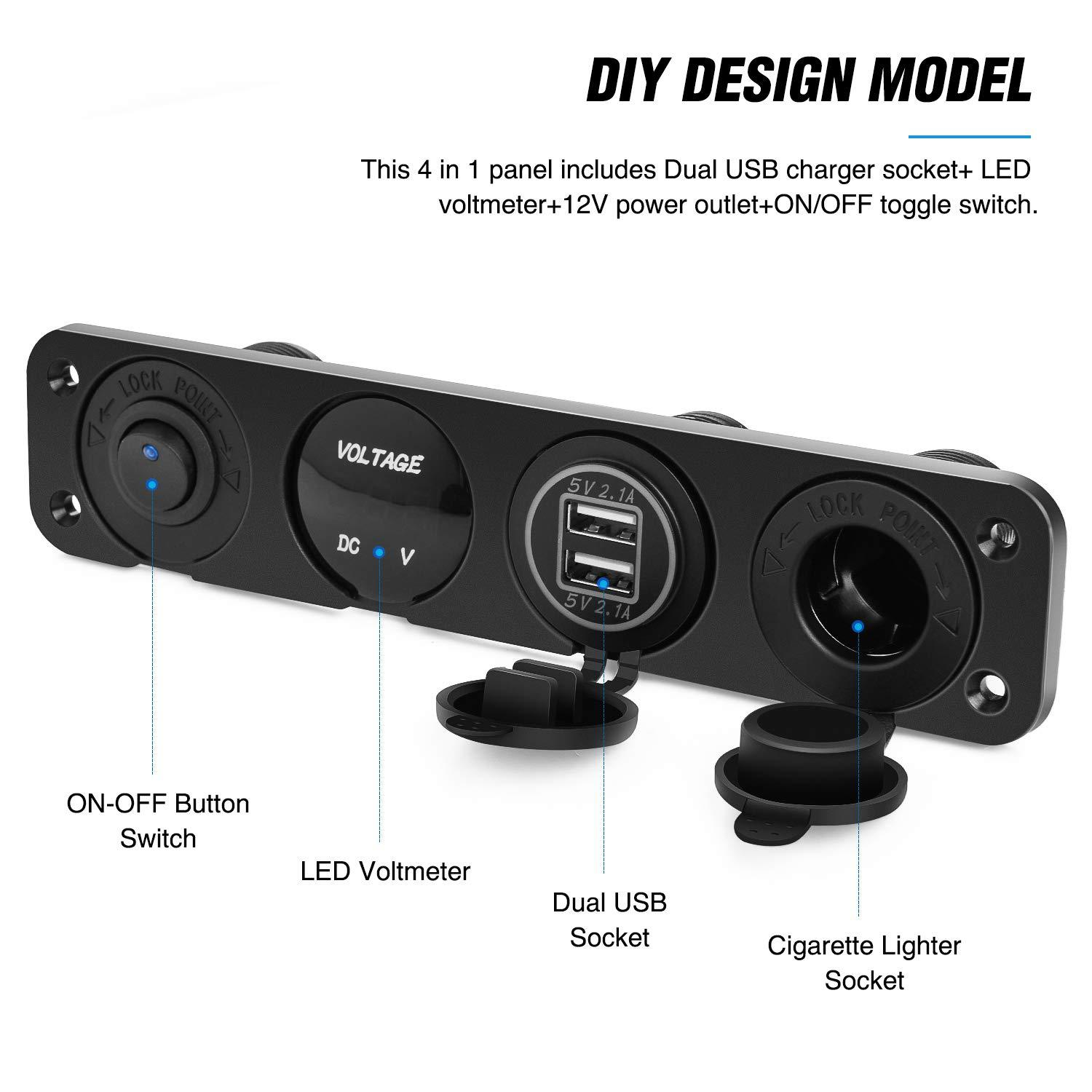

4 in 1 Charger Outlet Socket Panel QC Dua 12V USB Power Outlet Car Switch
Input Voltage:12-24V
Product weight: 150g
Output Voltage and Current: 5V/4.2A total current

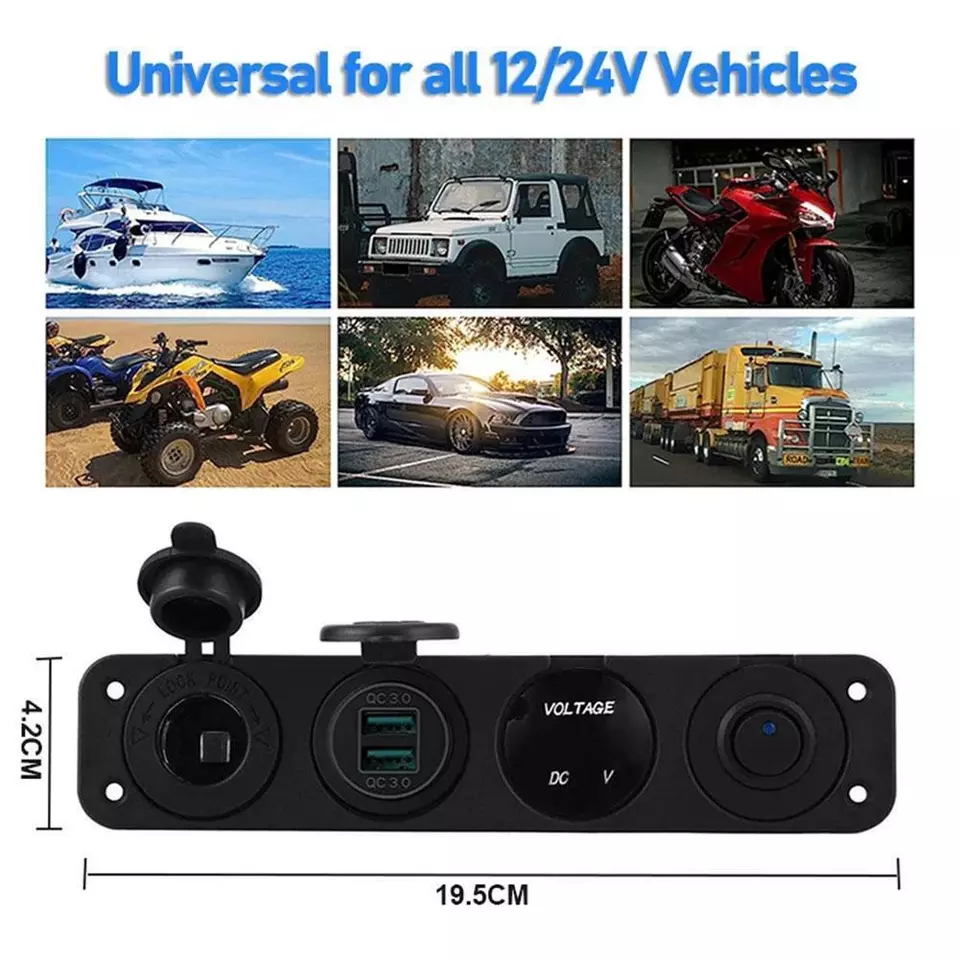

Product Size: Length 195mm, Width 42mm, Thickness 5MM

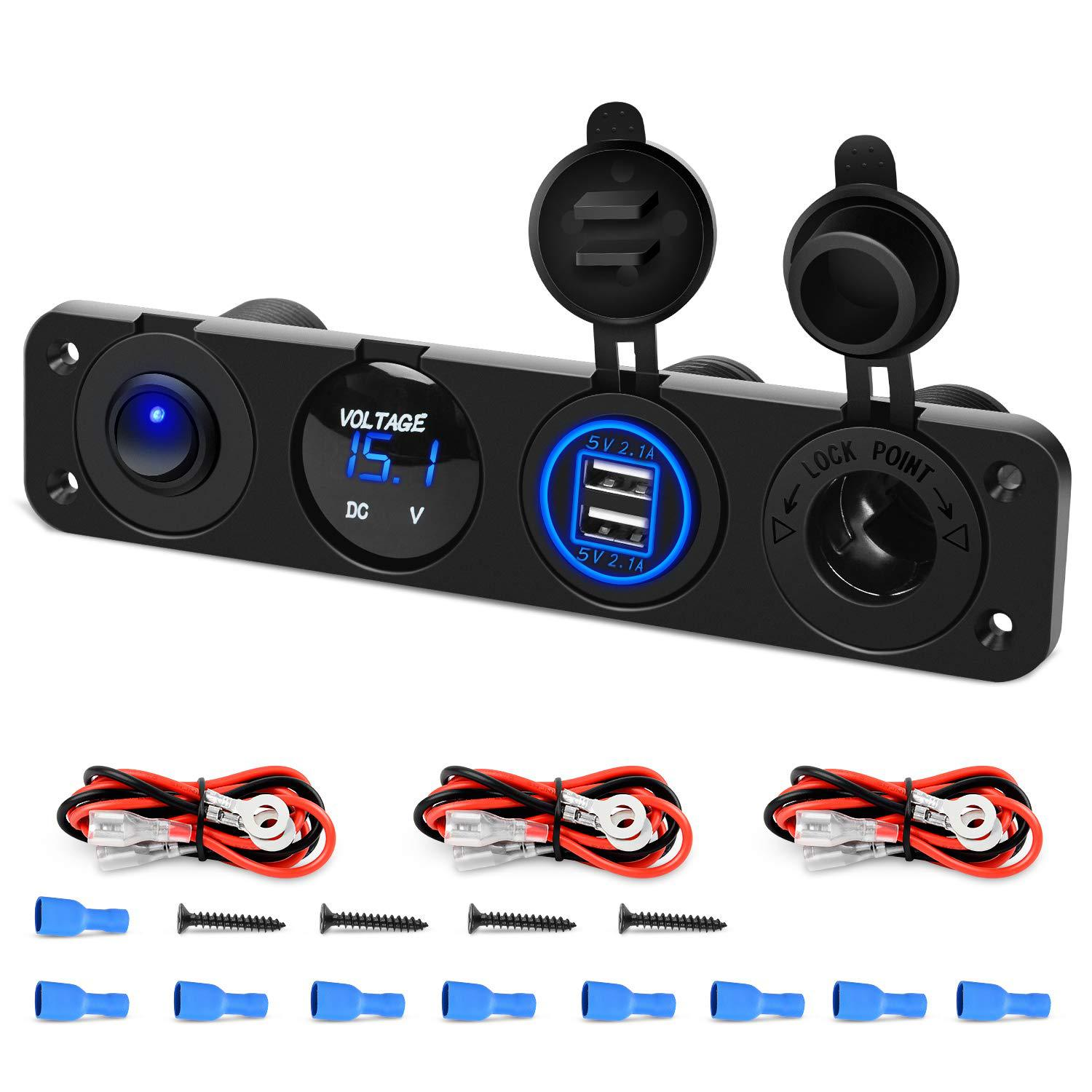

Accessories: 4 screws, 9 cold pressed terminals
Package Content:
4IN1 Socket Switch Panel
Product Use:
1.Cigarette lighter dual USB support all working voltage 12V-24V input, USB socket can give smart, cell phone, tablet PC charging. Cigarette lighter female socket for power supply.
2.Vehicle voltmeter can be used to measure whether the car or motorcycle power supply voltage is in the normal range, if the voltage is not normal, it can be found in time to protect the car's driving safety.
Wiring method: the back of the charging seat is labeled “+” “-”, corresponding to the power supply can be connected to the positive and negative poles. Of course, you can also lead out of the power supply, get an independent switch.
1. Please make sure to cover it with a waterproof cover when it is not in use, raining or washing the car;
2. Do not use it if the power supply is not enough;
3. Please use it after starting the engine, and be sure to unplug the electronic product without starting the engine.
