Description
This product uses high-performance chips to provide high-definition video and seamless
dynamic pictures. Support FHD1080P true full HD camera. Please read this manual carefully and keep it properly before use.

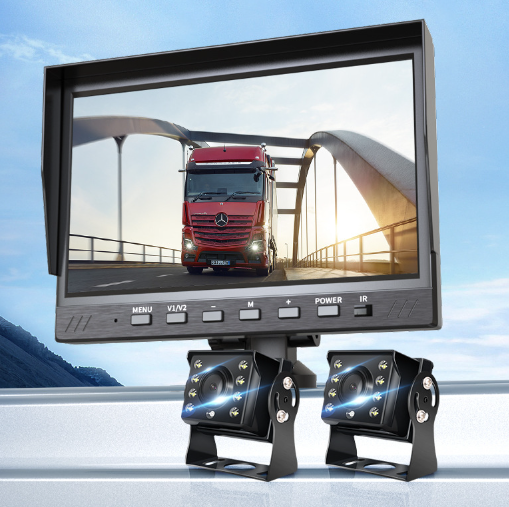

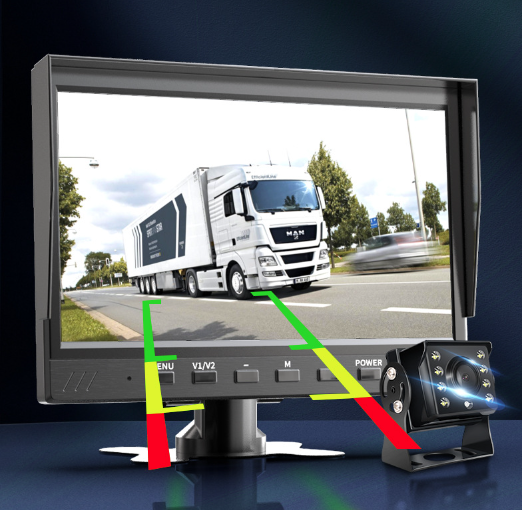

Backup Camera Hard Wired Backup Camera 7'' Quad Split Screen HD Rear Backup Camera Monitor System, Night Vision Backup Camera for Trucks,Trailer Heavy,Box,RV,Camper Bus Rearview Camera
Screen size: 7 Inches
Compatible devices: Monitor
Display technology: LED

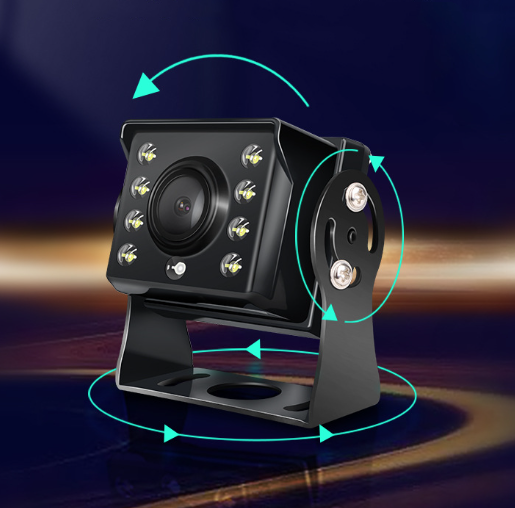

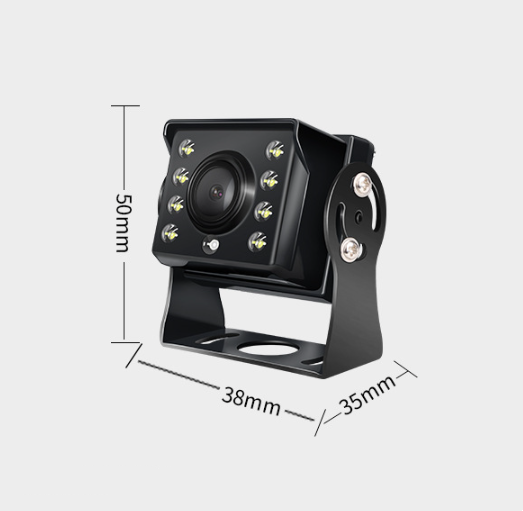

Camera Parameters
Image Sensor: 1/2.9" CMOS
Resolution: 1080p(1920*1080)
Minimum illumination: 0.1Lux@(AGC ON),0Lux with IR
F/NO: 2.4
Day/Night Mode: Color
Video connector: 4pin aviation connector (female)
Rated Operating Current: 65mA
Video System: PAL/NTSC
Effective Pixel: 1MP
Lens: 4G
Lens Focal Length: 2.8mm
Video Signal: AHD
Nominal Operating Voltage: 12V DC

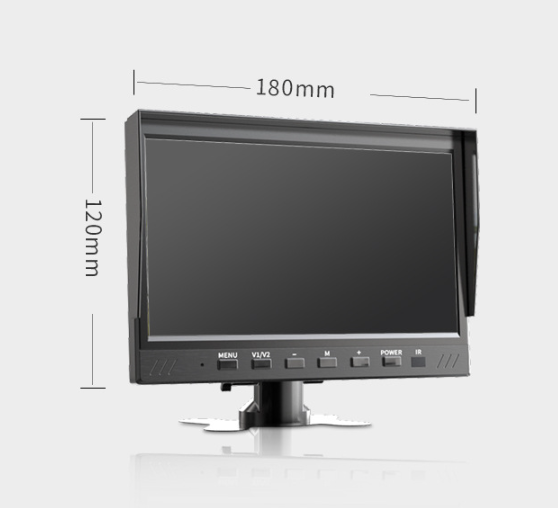

Display Parameters
Size: 7 inches
Power Supply: DC12V-24V
Resolution: 1024x600
Power: Approx. 7W
Contrast ratio: 350:1
Operating temperature: -20°-70
Signal Format: PAL/NTSC
Response time: less than 12ms
Brightness: 500
Language: 15 languages
Display Area: 7 inches diagonal
Mounting: Stand
Input Connector: Airline Head
Features: Reverse Priority Display
Package included:

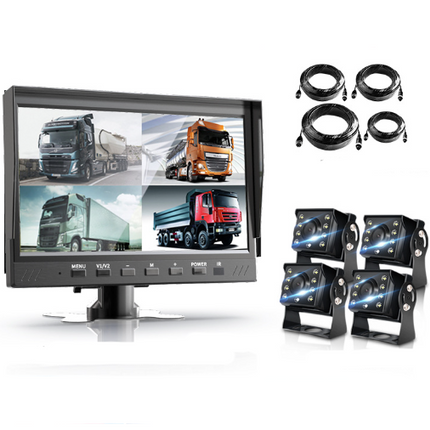

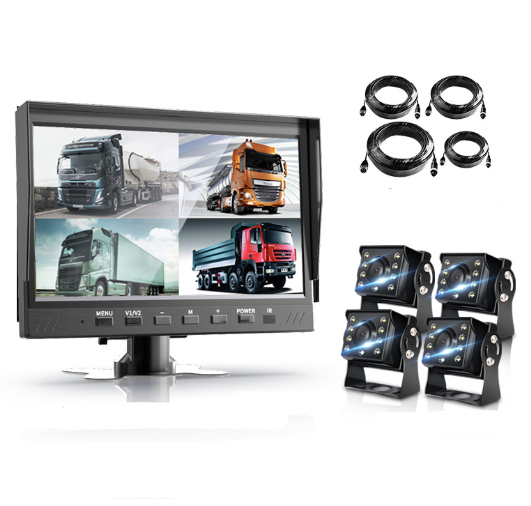

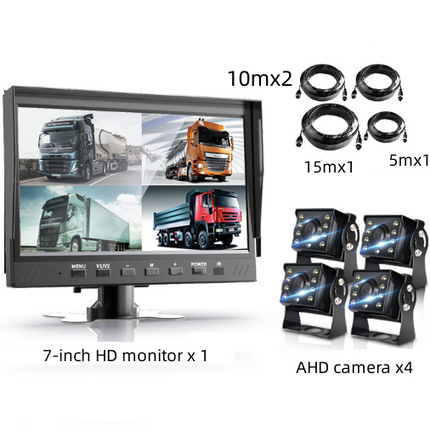

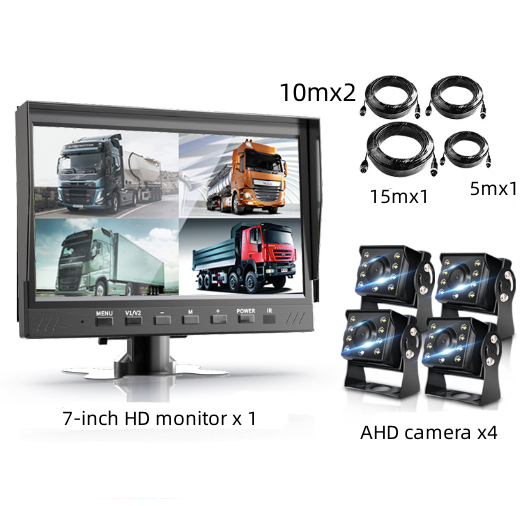

1x 7inch Truck Wired Backup Camera Set
