Description

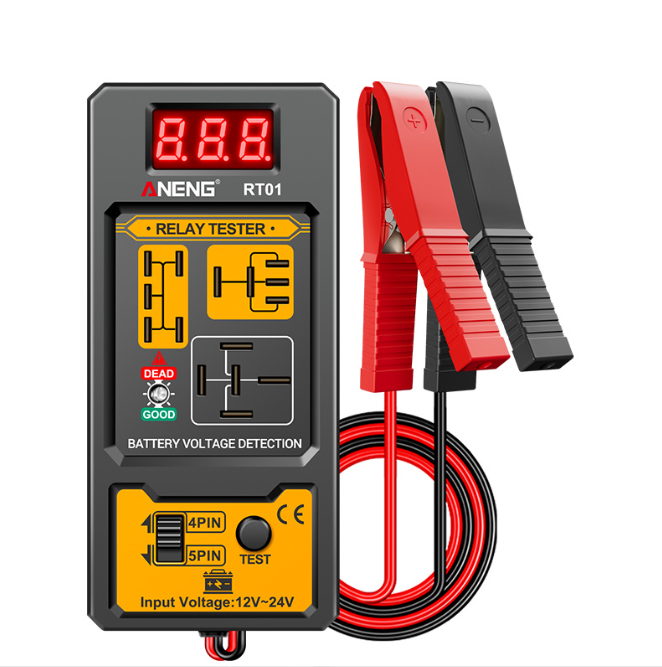

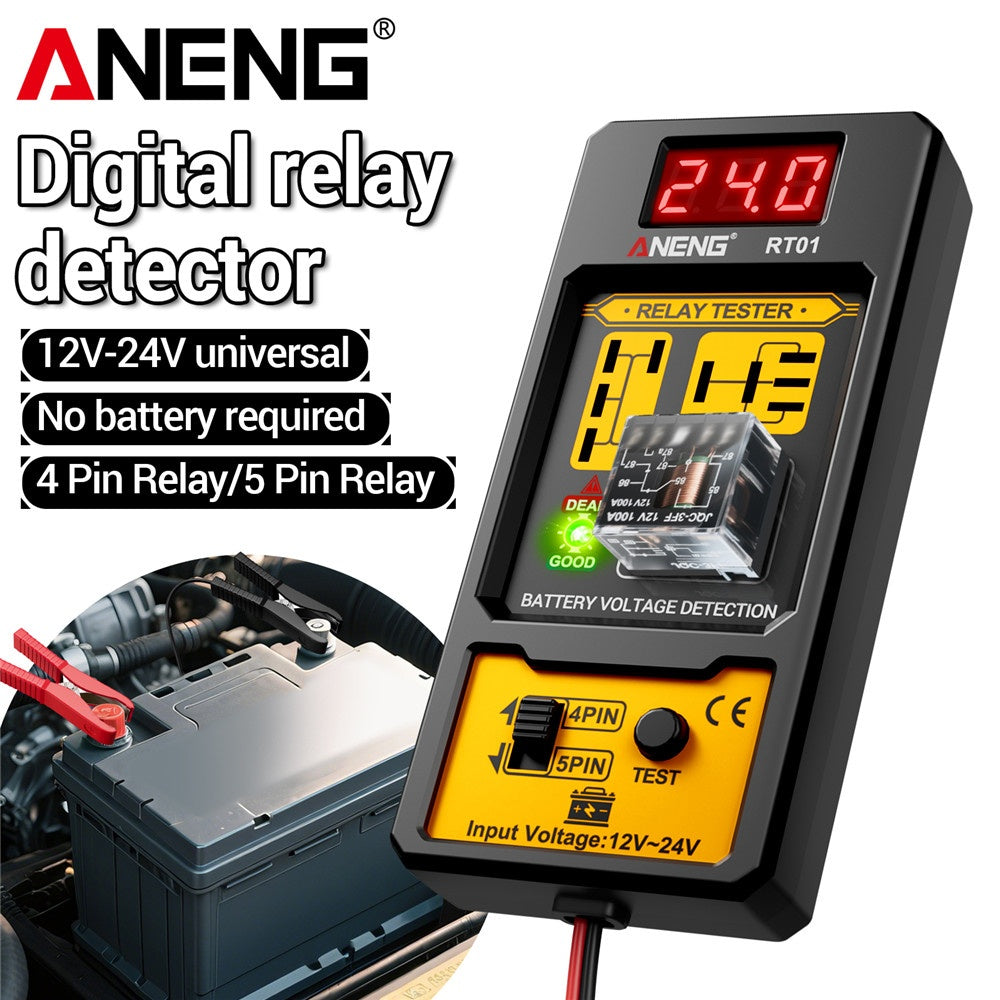

ANENG Automotive Car Relay Tester RT01 Voltage Detector 4/5 Pin Relays Universal 12V-24V Vehicle Battery Check Diagnostic Tools Introduce:

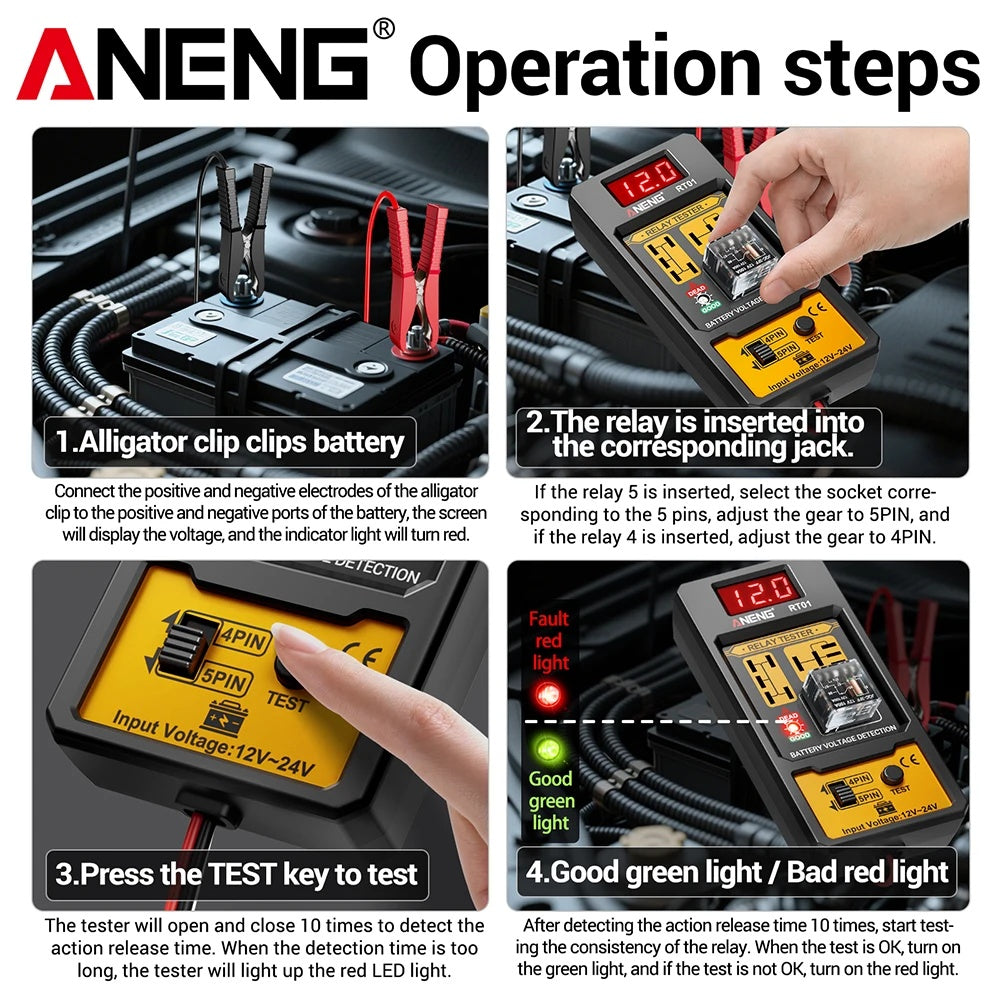

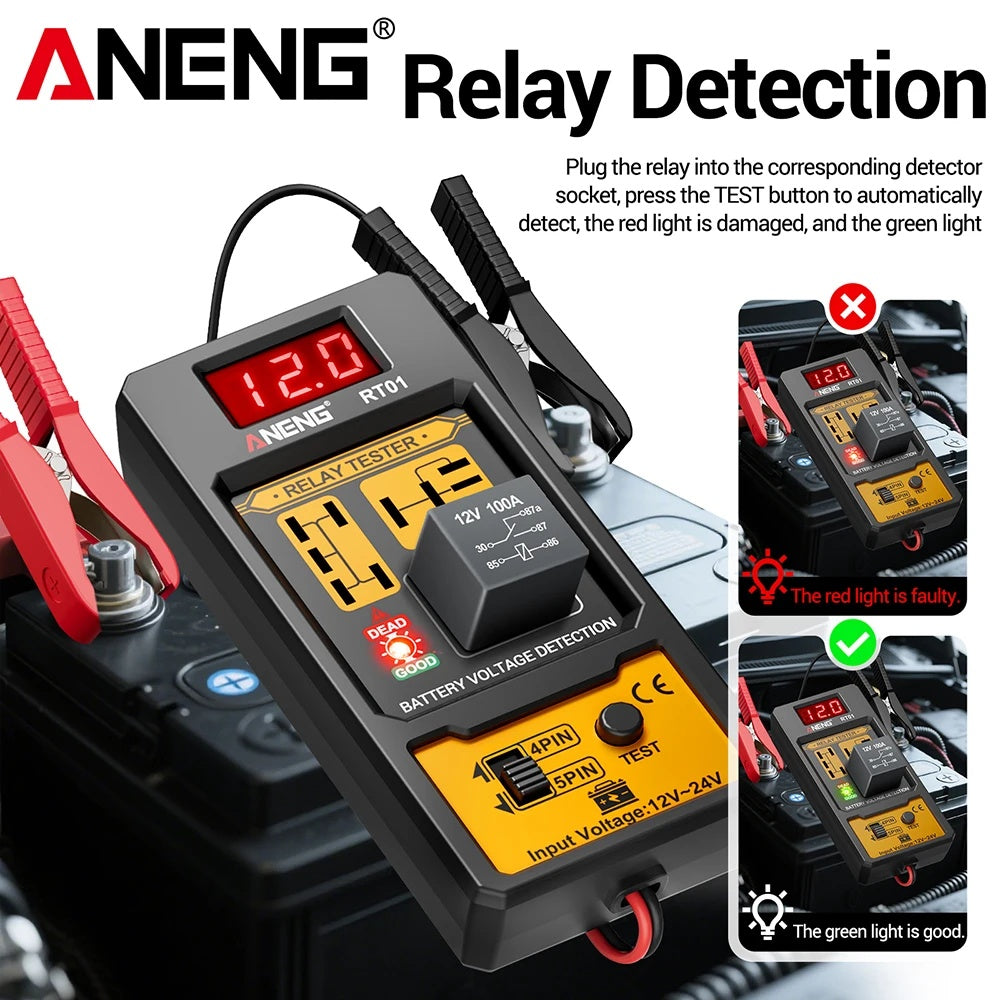

RT01 can quickly detect whether your relay is normal.It is easy to use and suitable for general-purpose automotive relays on the market.Durng testing, it needs to be connected to a 11V-25V battery in the car. The tester will automatically detect the foot position,the time of action release, and the consistency of the relay in each test stage. lf the tester turns on the green LED light, it means that the relay is normal; if the red LED light is on, it means that the relay is not normal.
Specification:
Product Model:RT01

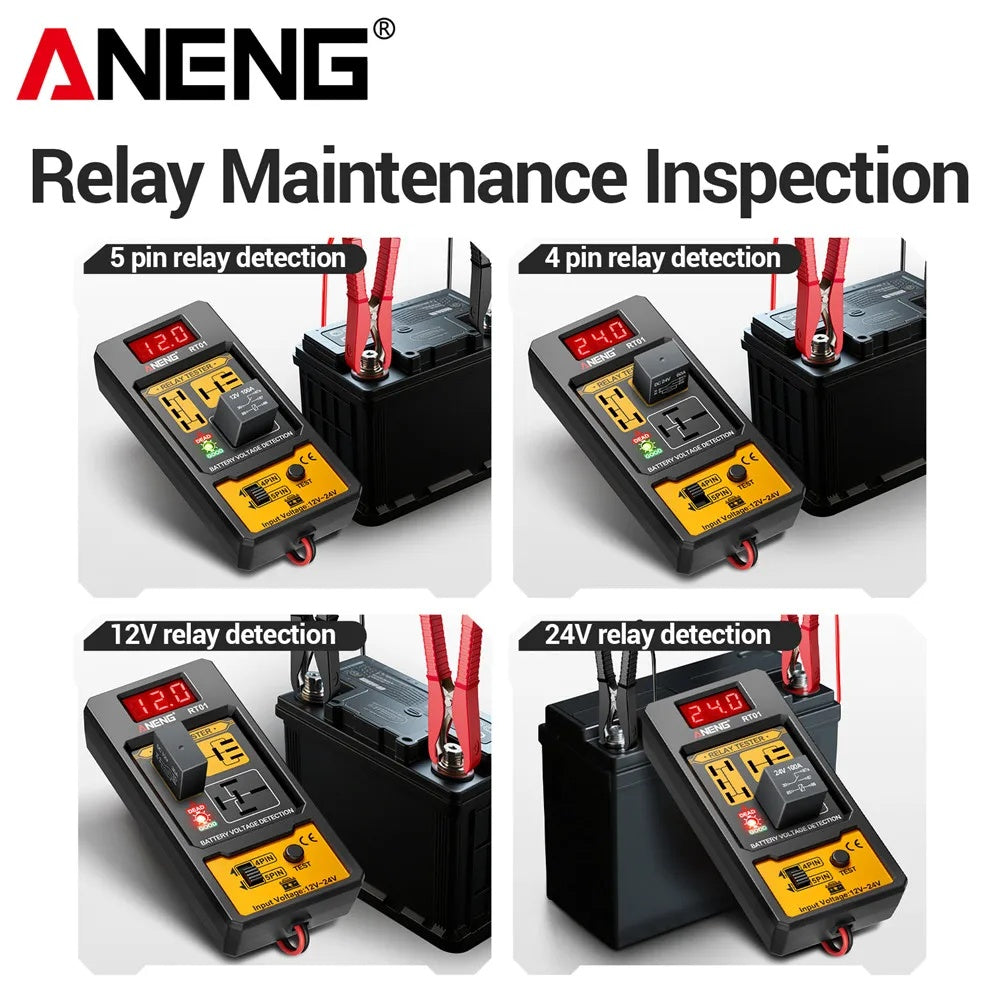

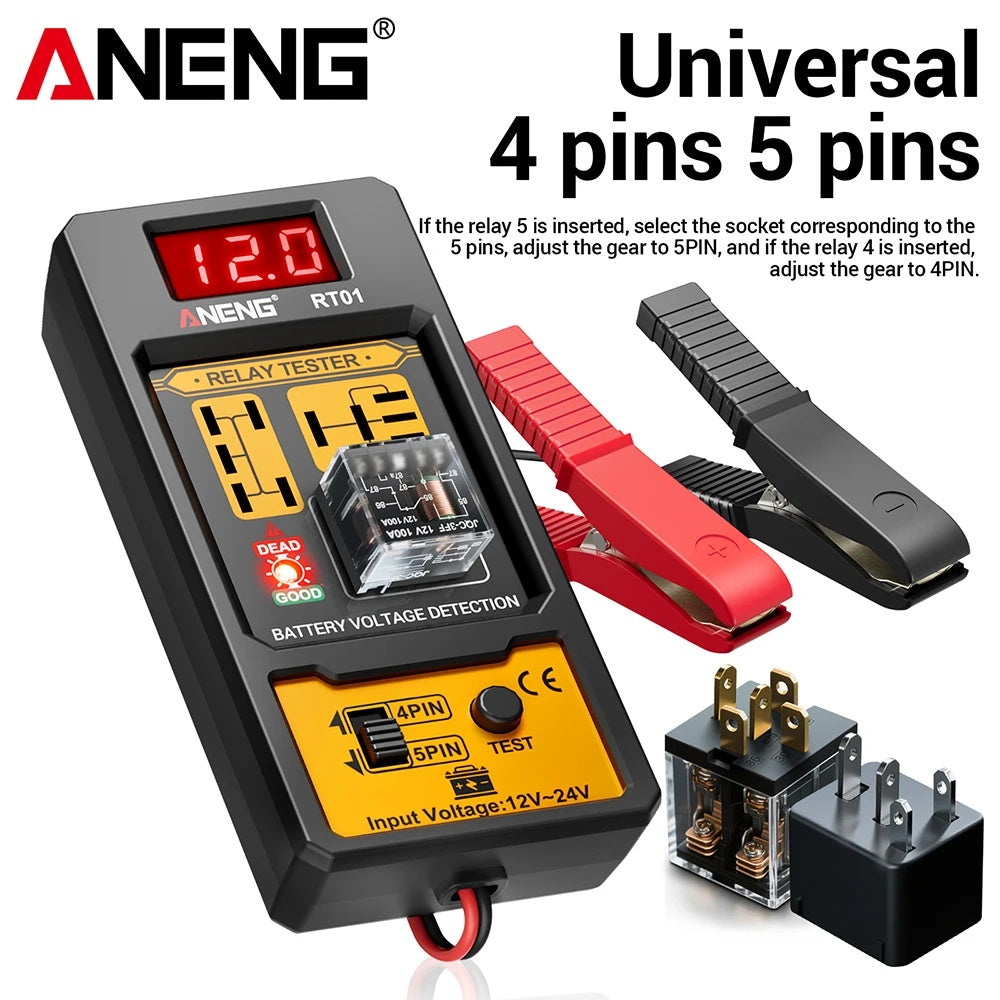

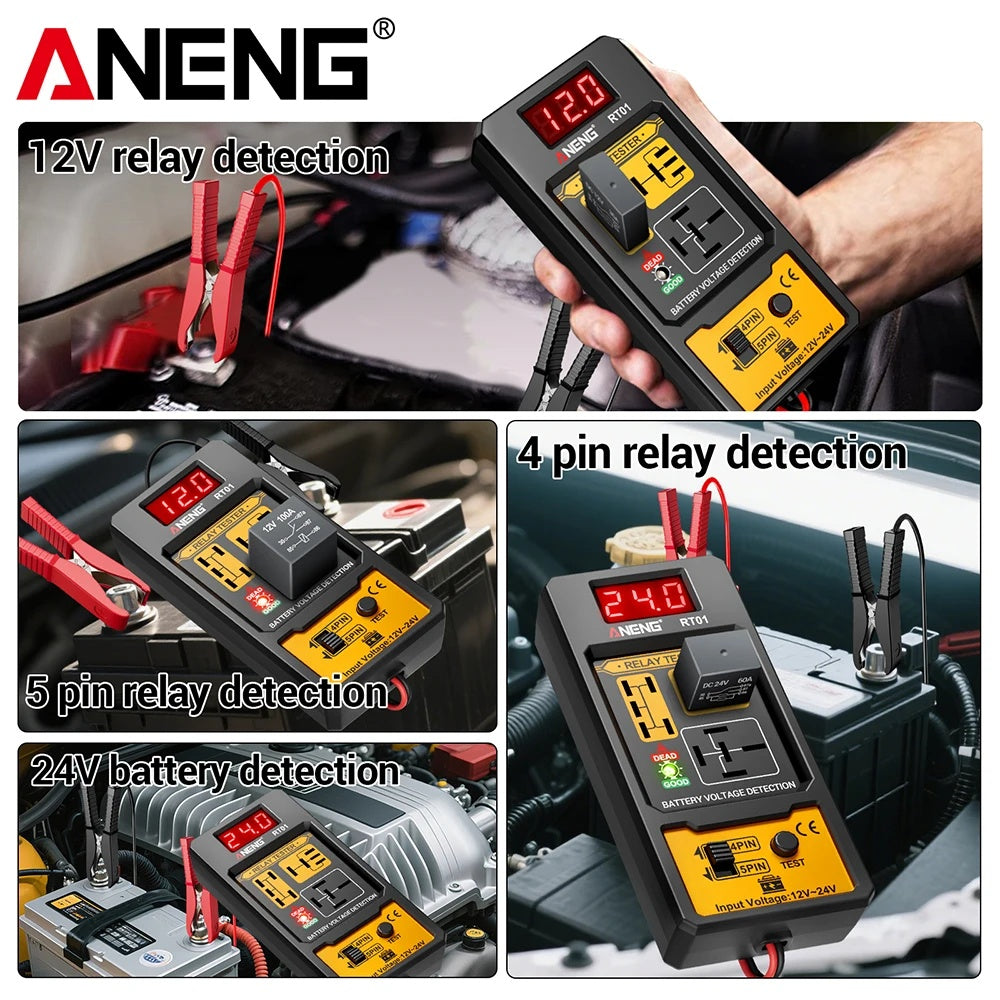

Relay DetectorApplicable pins:5 pins/4 pins
Battery detection:11V~ 25V
voltageApplicable coil resistance:≥20Ω
Use power:Connect car battery power supply
Detection prompt light:lf the tester turns on the green LED light, it means that the relay is normal; if the red LED light is on, it means that the relay is not normal.

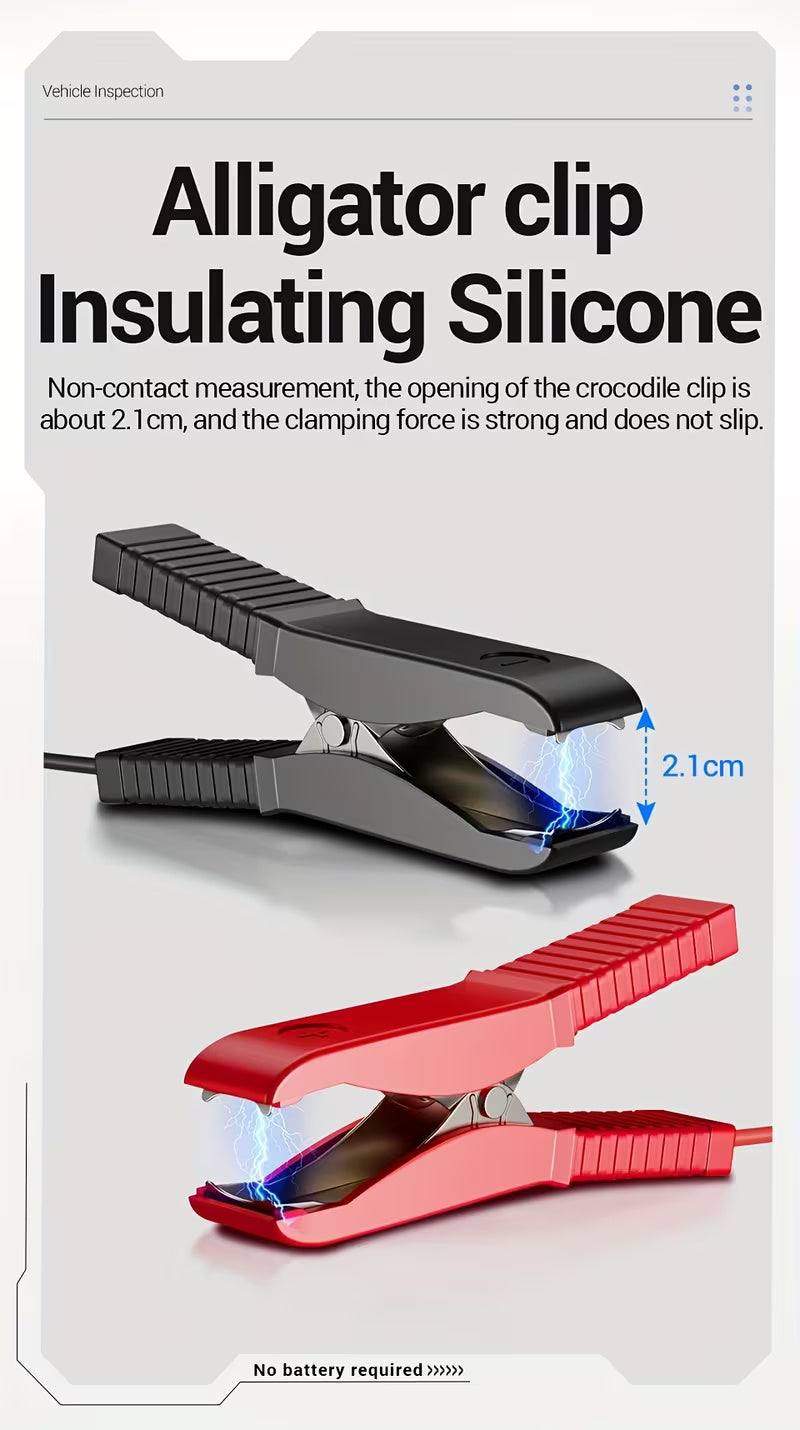

clip opening size:2.1cm/0.82inch
clip length:42cm/16.54inch
Digital display bright screen:Yes
Package:
1x RT01 Relay Detector
Attention: 1.The car battery must be a 12V battery, and the voltage of the battery must be between 11V and 25V.
2.The applicable coil resistance should preferably be above 20Ω.
