Description
ANCEL S300 Automotive EVAP Smoke Machine Diagnostic Vacuum Leak Detection Tester

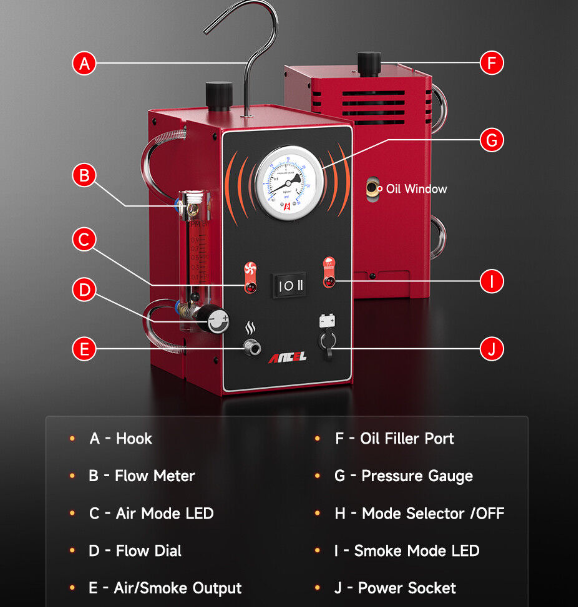

Ancel S300 Advanced Features

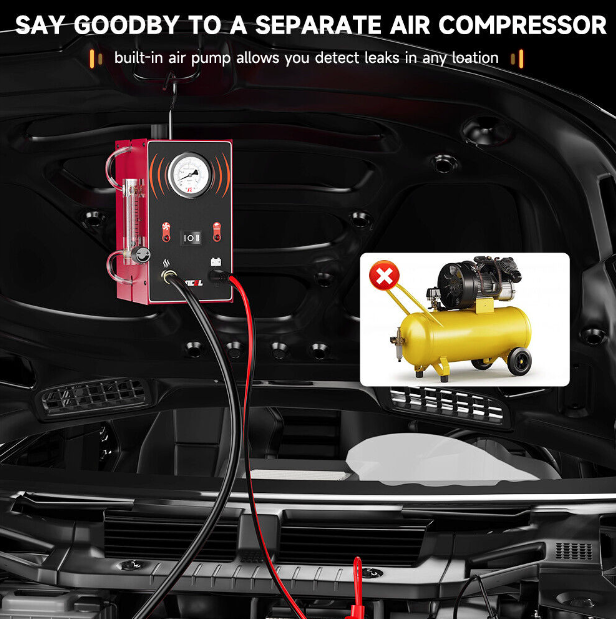

BUILT IN AIR PUMP: No air compressor needed. Just connect staright to your vehicle's 12V battery and generate smoke in seconds!

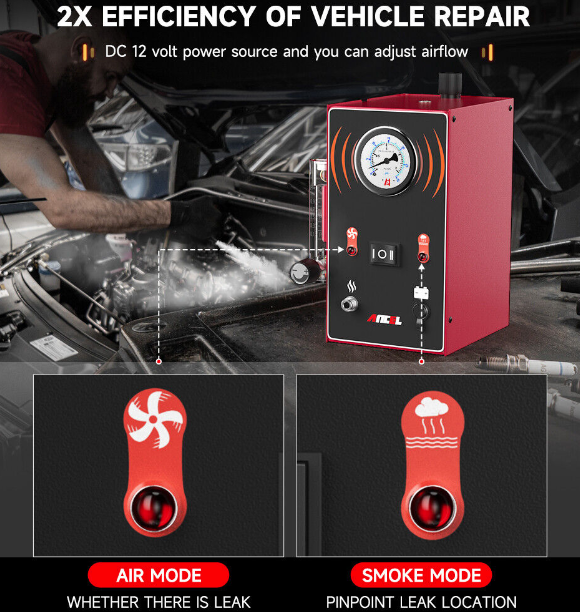

Build in Pressure gauge: to monitor total sytem pressure . Smoke mode to introduce smoke into vehicle system for leak detection.
Adjustable Flow Meter: Air Flow meter with ajustable button, easy to control the smoke effect(output flow:<7L/Min)
Portable & easy to use
Specifications
Power source: 12V fully charged vehicle battery
Current: 6A
Flow rate: < 7 LPM
Pressure output: 0.8~1.0 bar
Warning !!!
- Operator shall have basic knowledge about structure of vehicle and the engine. Vehicle service book is required.
- To ensure better test result, it’s required there’s no wind in the operating area.
- Do NOT use the product on smoke sensitive component. Eg. Smoke residual might reduce sharpness of head lights if apply to head light housing.
- ONLY low density mineral oil based fluid is allowed to use as smoke oil. Johnson&johnson’s baby oil(pink label) is compatible. Use funnel to avoid spread the oil to other parts of the unit.
- Check oil level before use, if oil level is lower than the middle of the gauge, the unit would need a refill, but do not overfill the unit beyond the gauge.
- The product is only allowed to use while ignition’s off. Be sure to use 12V vehible battery, and the battery shall be full charged and voltage not lower than 12V.
- Use bright light torch/ halogen light to help find the leaks.
Wear goggles if available

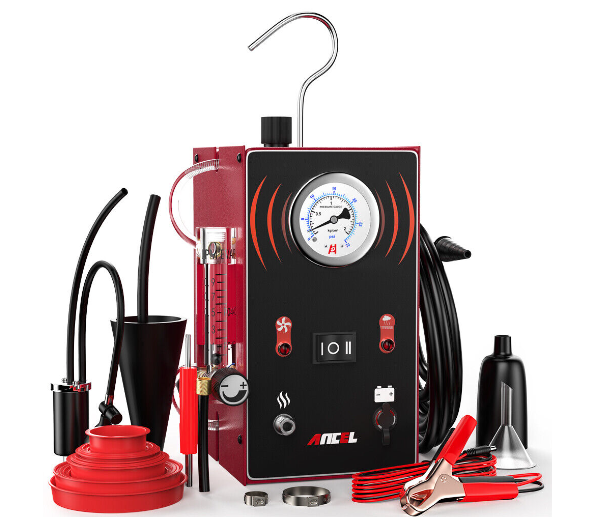

Package included:
1x ANCEL S300 Automotive EVAP Smoke Machine
