Description

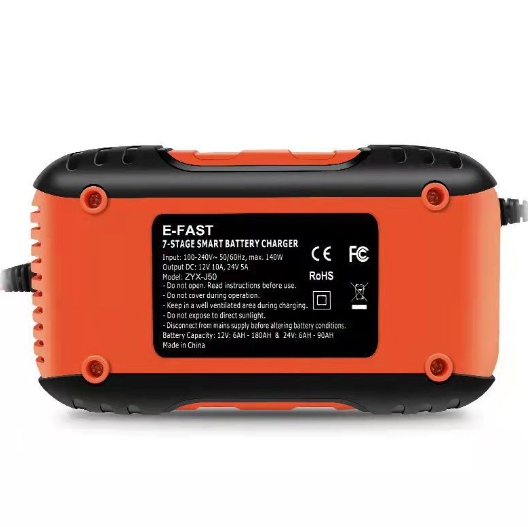

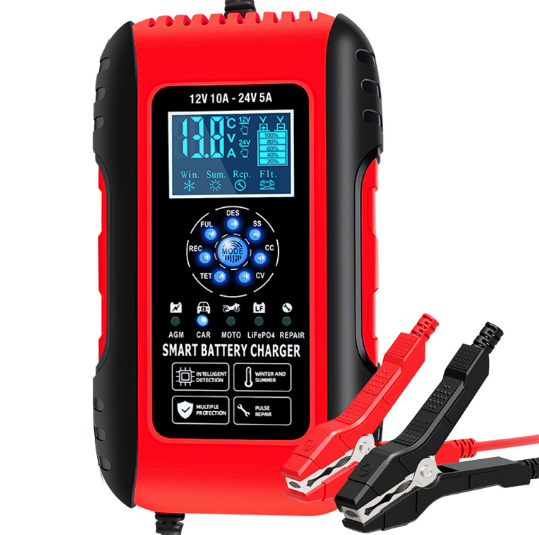

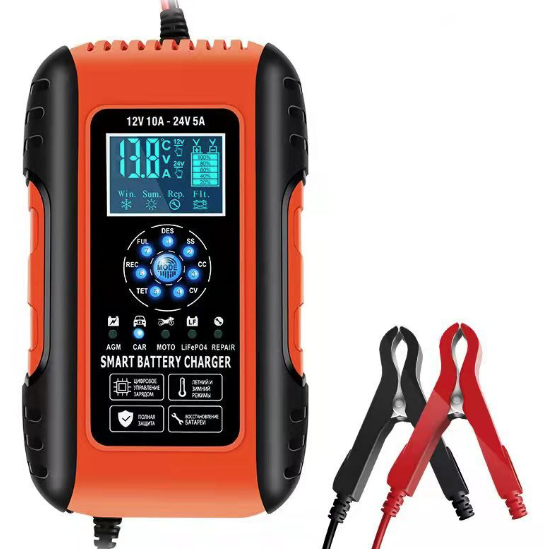

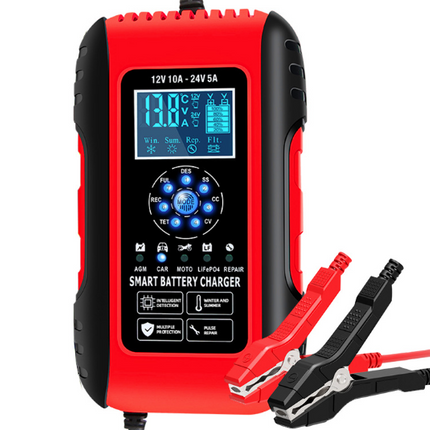

12V 10A-24V 5A 7-Stage Smart Battery Charger for AGM, Lead-Acid, LiFeP04 Batteries
IMPORTANT SAFETY INSTRUCTONS: Please read this manual and follow the instructions carefully before using.
SPECIFICATIONS:
AC-Input:100-240V 50/60Hz
Output Voltage: 12V / 24V Auto
Output Current: 12V 10A & 24V 5A
Output Volt under No Load: 29.6V
Minimum Start Volt: >7.0V
Input Power With Load: Max. 140W
Input Power underNo Load: 3W
Cooling: Fan
Size (LxWxH): 170x100x65mm
Weight: 605g
MAINFEATURES:
High efficiency (>85%).
AGM,Car, Motorcycle , LiFePO4 Battery type can selectable.

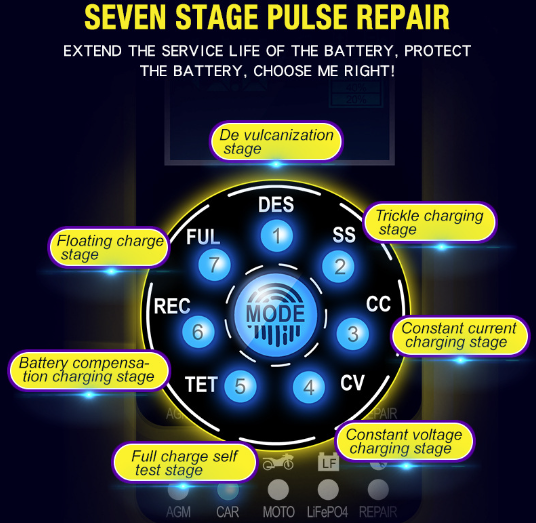

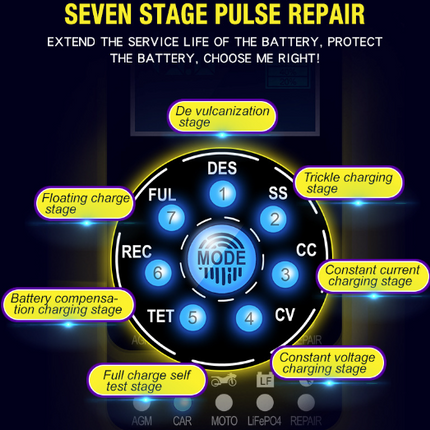

The 7-stage microprocessor controlled charging process provides the best possible application and enables efficient battery charging.
Charging voltage adapts to temperature, that can prevent over - or under - charging of battery.
Capable of recharging severely discharged or heavily sulfated battery.
Reverse polarity protection, short circuit protection, over-charge protections,
parks free contact.
LCD display: voltage, current, temperature etc.
Ease of use, Clear charging status display.
Do not over-charge your battery even it is kept connecting in any modeFull microprocessor controlled.
DO not open. Read instructions before use.
DO not cover during operation,- Keep in a well ventilated area during charging
DO not expose to direct sunlight.
Disconnect from mains supply before altering battery conditions.
Battery Capacity: 12V: 6AH-180AH & 24V: 6AH-90AH
Package Included:
1x Car Battery Charger
1x User Manual
