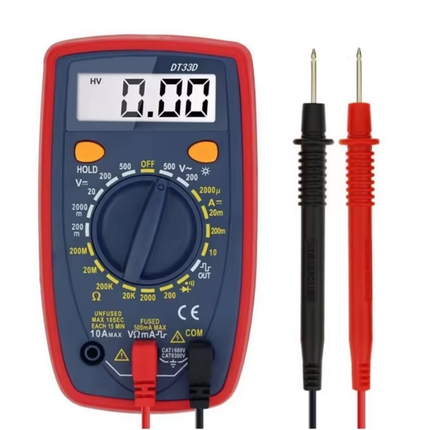

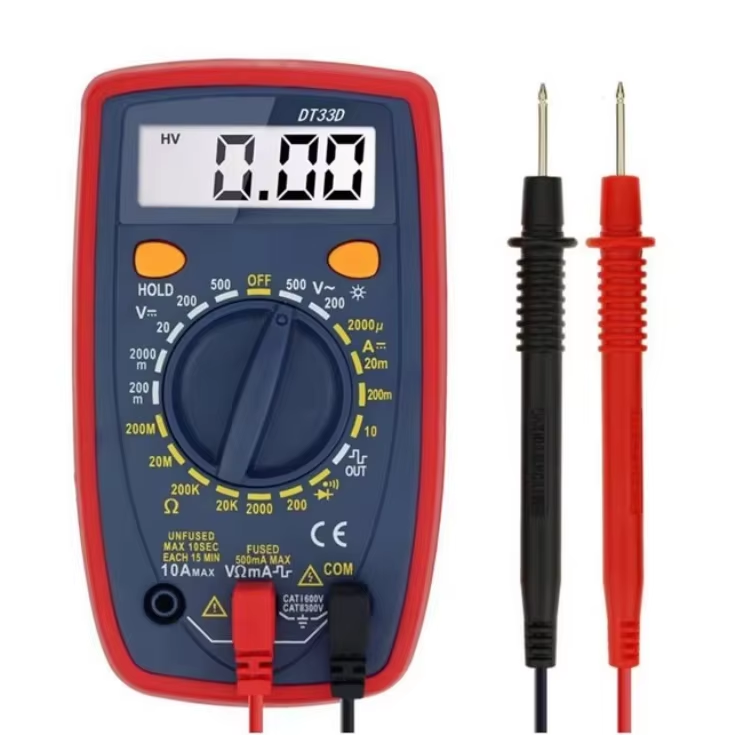

DT33D Digital Multimeter V2.0 with Square Wave Output Data Hold and Backlight
Digital Multimeter DT33D V2.0 with Square Wave Output Data Hold and Backlight
Product Overview
The DT33D is a compact manual-range digital multimeter featuring data hold backlight display and square wave signal output It is ideal for home electrical repairs DIY electronics automotive circuit troubleshooting and everyday electrical testing
Key Features
Manual Range Simple to operate with clearly marked dial positions
Maximum Display 1999 counts
Square Wave Output Built-in square wave signal source for basic testing
Data Hold Freeze the current reading with one press for easy recording
Backlight Display Clear readings even in dim environments
Low Battery Indicator Alerts you when the battery is running low
Overload Protection Safer operation
Measurement Ranges and Accuracy
DC Voltage 200mV-2000mV-20V-200V-500V Accuracy plus or minus 0.8 percent
AC Voltage 200V-500V Accuracy plus or minus 1.0 percent
DC Current 2000uA-20mA-200mA-10A Accuracy plus or minus 2.0 percent
Resistance 200ohm-2000ohm-20kohm-200kohm-20Mohm-200Mohm Accuracy plus or minus 1.0 percent
Other Functions
Continuity Buzzer
Diode Test
10A Current Input Jack
Technical Specifications:
Maximum Display: 1999
Display Size: 49 x 16mm
Power: 6F22 9V Battery
Product Size: 130 x 73 x 37mm
Net Weight: Approx 145g
Packaging: Color Box
Package Size: 138 x 108 x 45mm
Package Weight: Approx 260g
Package Includes
Test Leads User Manual Battery
Applications
Home electrical testing DIY electronics automotive circuit troubleshooting battery testing continuity testing and more
Note
The DT33D is a manual-range multimeter not auto-ranging The 10A current input jack is not fuse-protected Please confirm the correct range before use
