Description

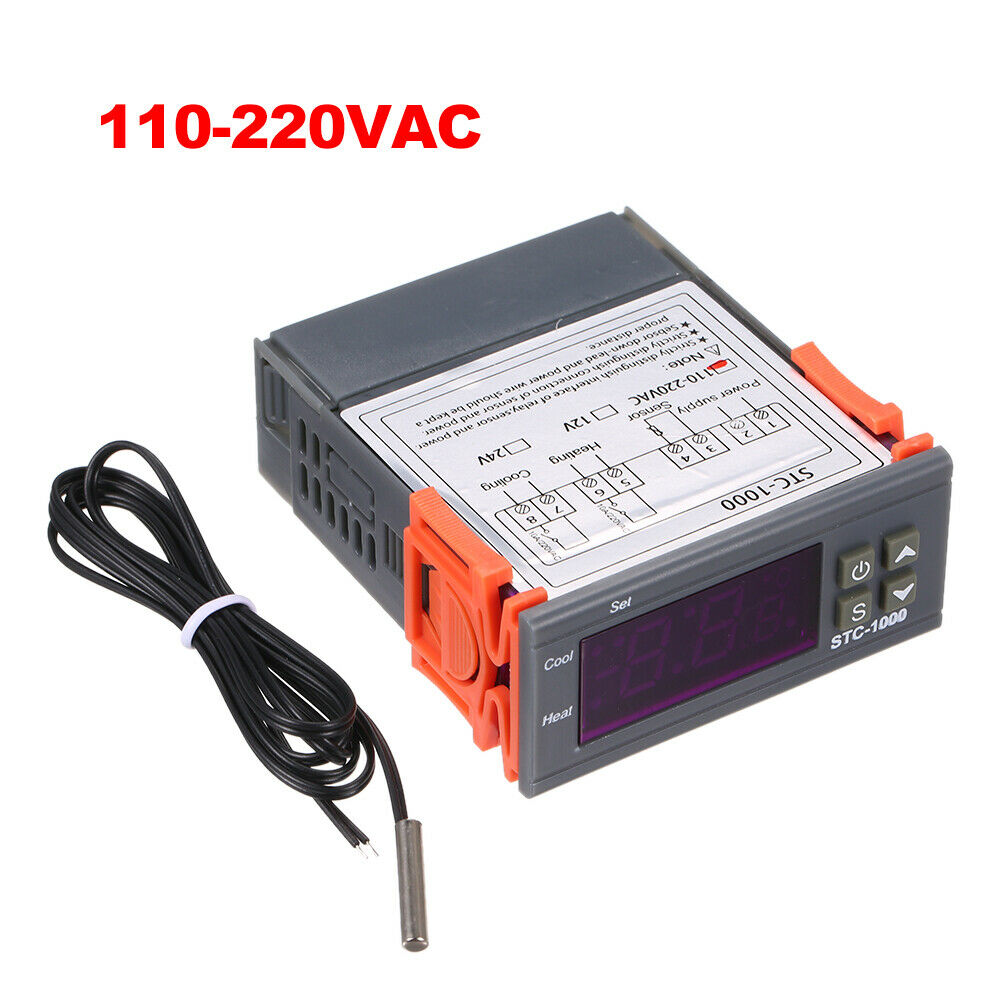

Digital Temperature Thermostat STC-1000 Controller 110V-220V Heating Cooling LCD
Note: This product does not distinguish between the positive and the negative.
This Digital Temperature Controller can be used for domestic freezer, water tanks, refrigerator, industrial chiller, boiler, steamer, industrial equipment and other temperature control applications, easy to operate and use.
Features:
Mini temperature controller with large and clear LED-display for better readability.
Support switch modes between cooling mode and heating mode.
Control temperature by setting the temperature setting value and the difference value.
Support temperature calibration and refrigerating control output delay protection.
Support alarm function when temperature exceeds temperature limit or when sensor error, ensuring safety.
Wide temperature measuring range from -50℃ to 99℃.
Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, boiler, steamer, industrial equipment and other temperature control applications.
Specifications:
Model: STC-1000
Power Supply: 110-220VAC
Temperature Measuring Range: -50℃ - 99℃
Resolution: 0.1℃
Accuracy: +- 1℃ (-50℃ - 70℃)
Sensor Error Delay: 1 Minute
Power consumption: <3W
Sensor: NTC Sensor (1PC)
Ambient Temperature: 0℃ - 60℃
Storage Temperature: -30℃ - 75℃
Relative Humidity: 20% - 85% (No Condensate)
Sensor Length: 1M(Include the Probe)

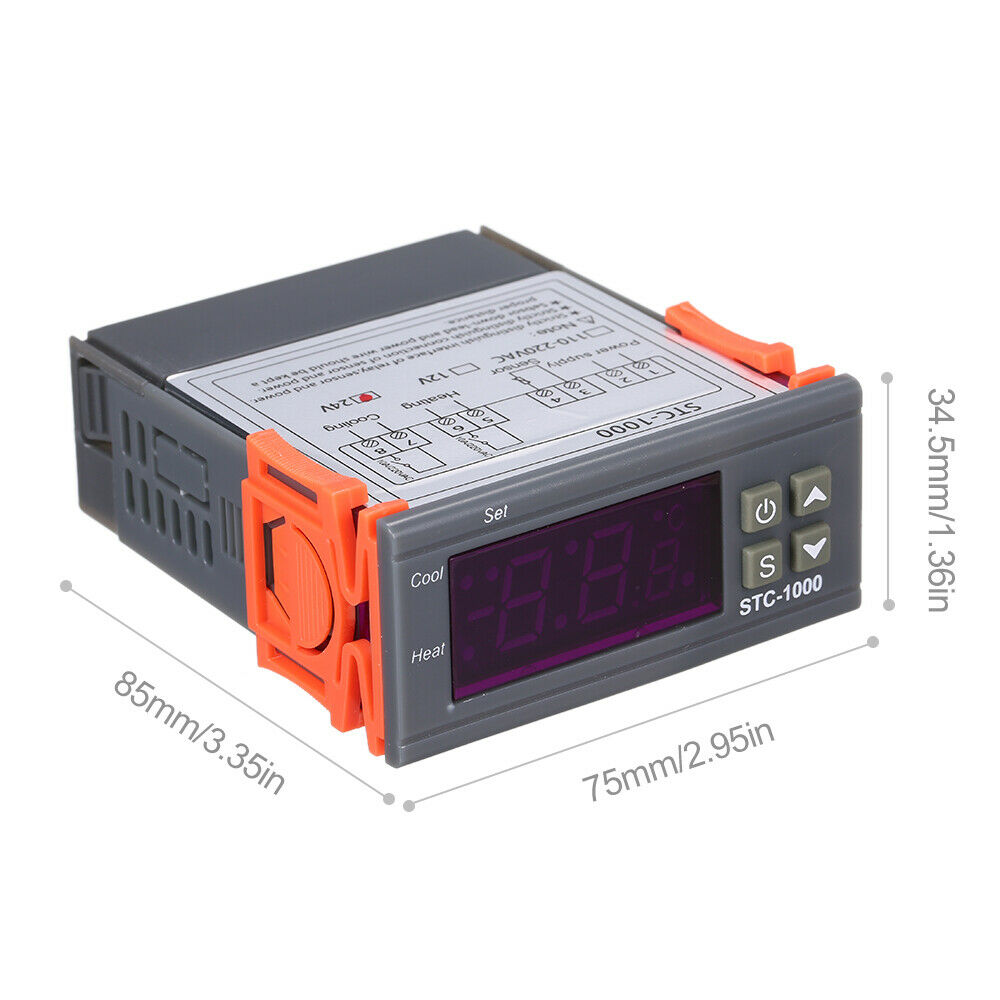

Front Panel Size(LxW): 75 x 34.5mm
Mounting Size(LxW): 71 x 29mm
Item Size: 85 x 75 x 34.5mm
Package List:

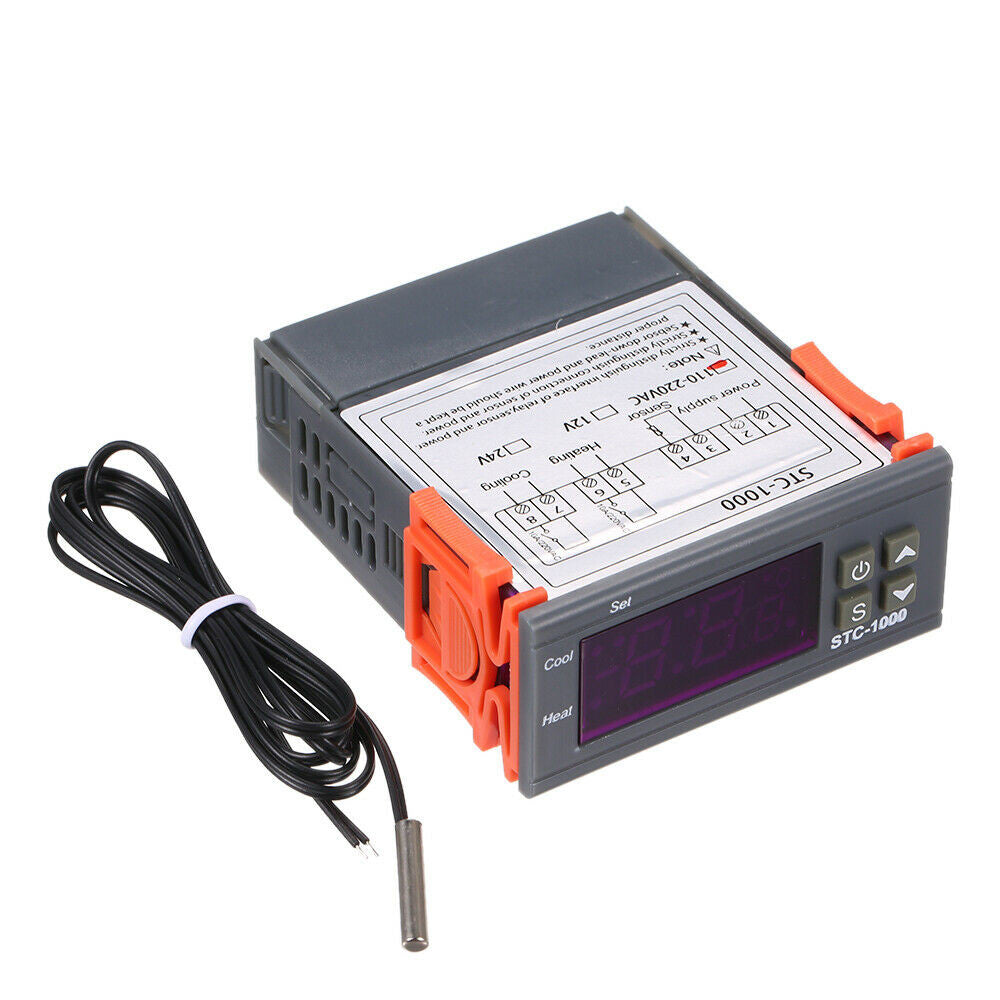

1 x Temperature Controller
1 x Temperature Sensor

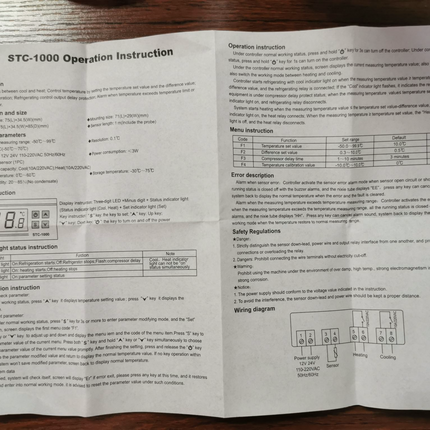

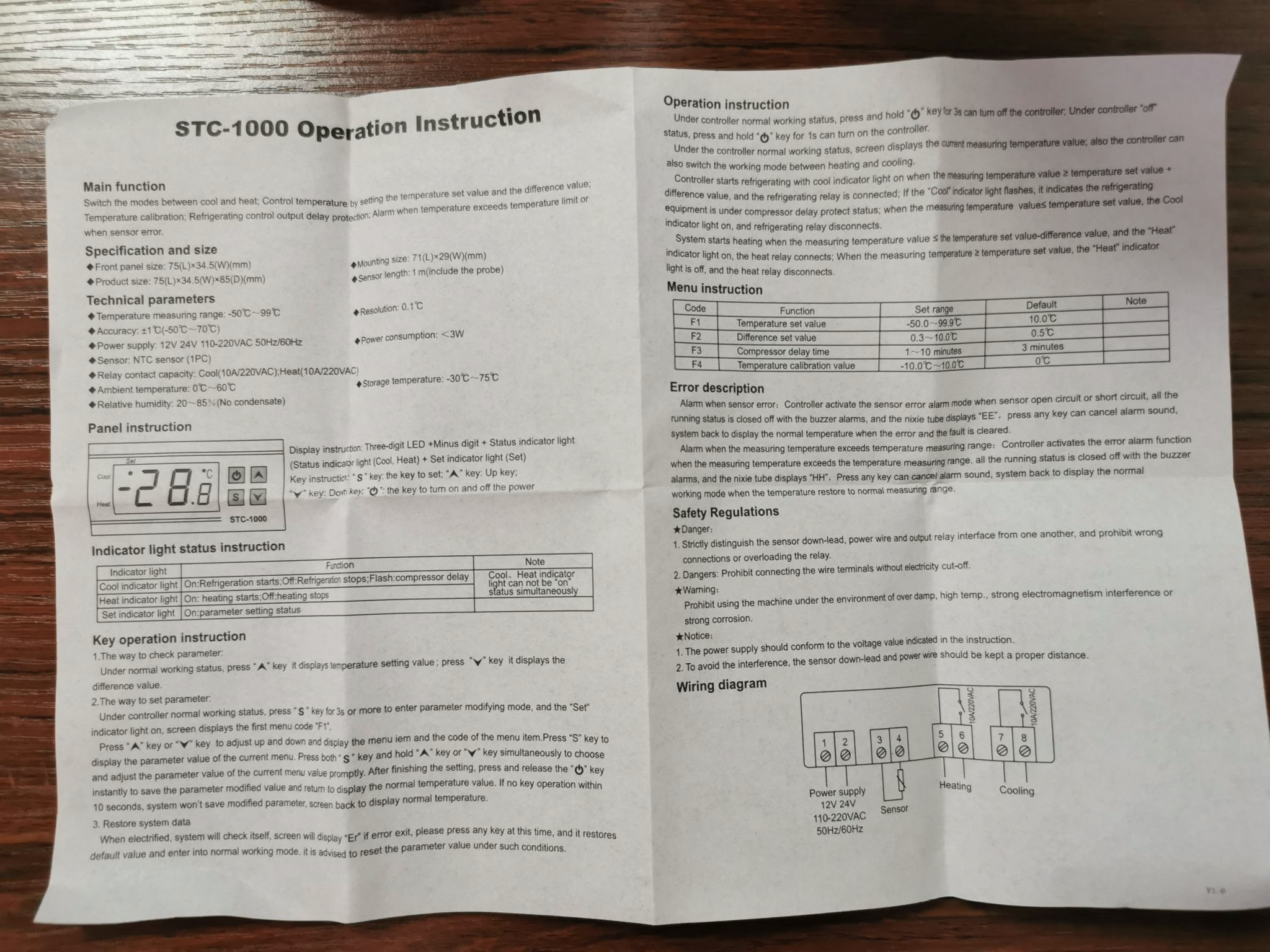

1 x User Manual(English)
