Description

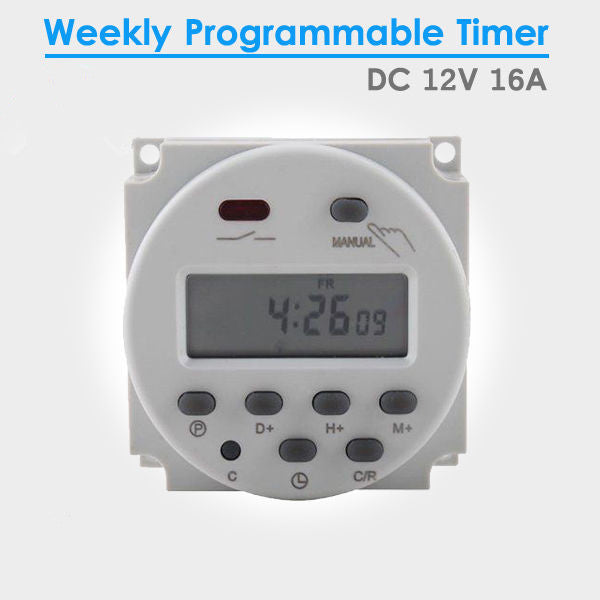

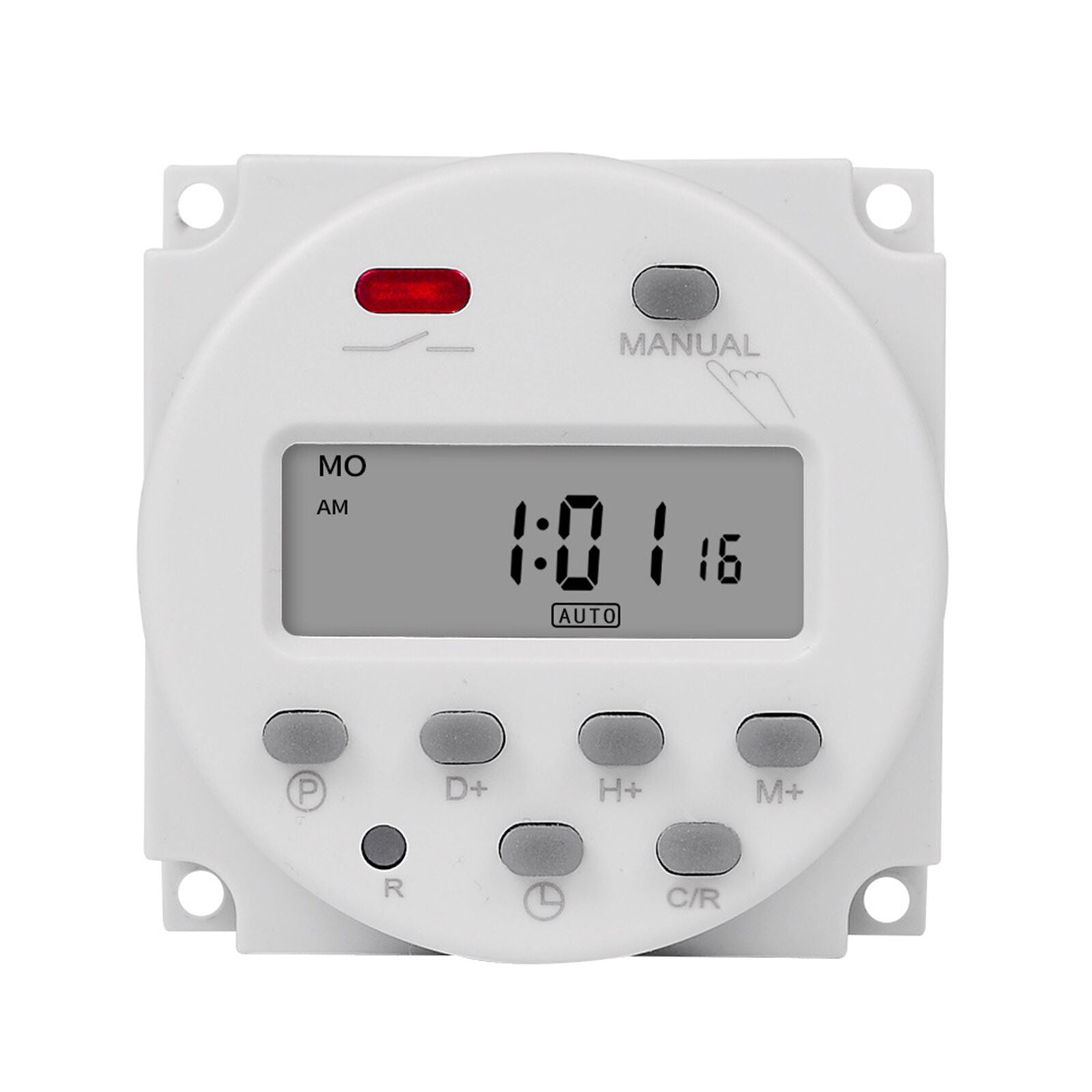

Lcd Day Programmable Timer Time Relay Switch 24 Hour 7 Mini Dc 12V 16A
Features:
Panel mounted
advanced pre-setting one week before
digital electronic timer switch with daily programs
repeat programs with 17 on/off setting and manual over-ride
auto timer error correction +- 30 sec
Specifications:
Material: Plastic, Electronic Parts
Rated Control Voltage: 12±10% VDC
Contact Capacity: 16A 12VDC
Power Consumption: 7.5VA(max.)
Internal battery: 1.2V/40mA (rechargeable batteries)
Hysteresis: <=2 sec/day(25°C)
Display: LCD
Programmable: 16 times/week or day
Minimum Interval: 1 minute
Switching Contact: 1 changeover switch
Ambient Temperature: -10 to +40°C
Mounting Hole Diameter: 3mm / 0.12"
Overall Size (Approx.): 62 x 60 x 33mm / 2.4" x 2.36" x 1.3"(L*W*H)
Net Weight: 68g
Tips:
Before starting the program, the timer should be charged for at least 5 minutes as the inbuild battery may be flat at time of delivery;
Before setting the program, press the reset button reset to clear the memory for the new instructions;

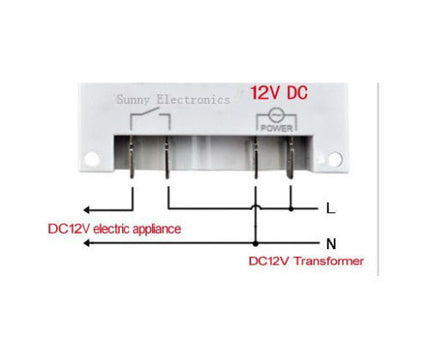

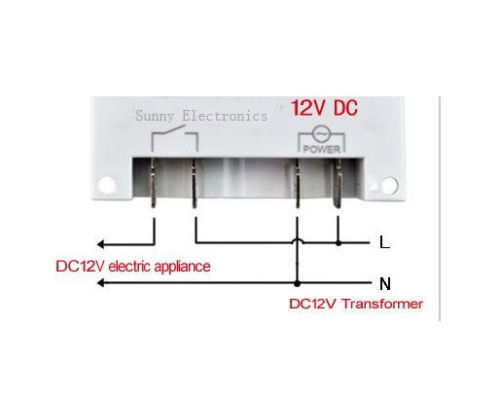

After the program is set, please insert the timer to the plug. Then connect the electric appliance to the timer;
The on and off can be set eight times each day, which can be set as follow:
First option, Sunday;
Second option: from Monday to Friday
Third option: Saturday and Sunday(weekend)
Fourth option: from Monday to Saturday(working days)
Fifth option: Monday,Wednesday,Friday
Sixth option: Tuesday,Thursday,Saturday
Seventh option: from Monday to Wednesday
Eighth option: from Wednesday to Saturday
Package Includes:
1x Programmable Timer
