Description

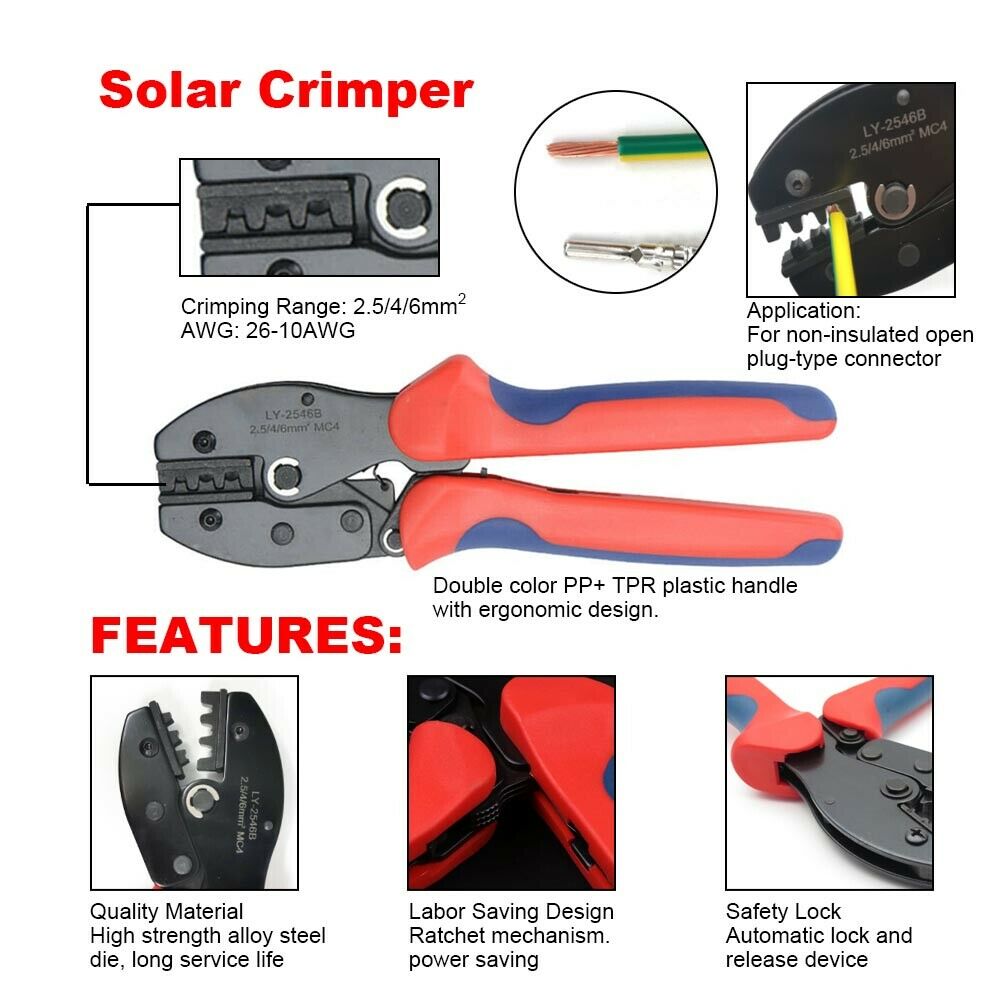

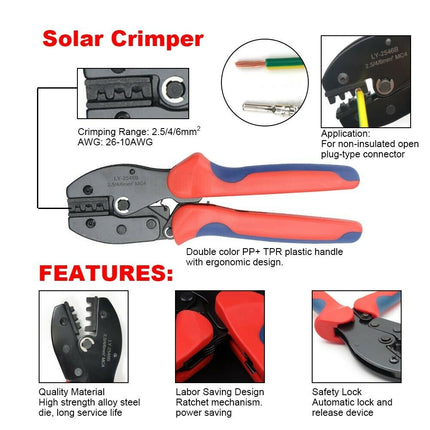

Solar Crimper MC4 PV Crimping Pliers Cable Terminals Tool Panel Cable Connector
Ratcheting mechanism with adjustable clamping force allows for precise, repeatable crimps | Compound action design puts more crimping power into each squeeze.
Double crimping die creates a secure crimp that resists pull-out | Ratcheting function allows you to secure a wire connector in the die before inserting the stripped wire into the barrel.
Quick release lever frees the crimper jaws in any position and when double crimp is complete, acts as a built-in safety measure that can open the handles whenever tool is jammed or stuck.
Steel jaw contains color-coded wire size markings for red (22-18 AWG), blue (16-14 AWG), and yellow (12-10 AWG) terminals | Ergonomic bi-material handles offer a comfortable, secure grip.
Ideal for nylon insulated solderless terminals - It is not recommended to be used with heat-shrink connectors.
Specifications:
Capacity: 2.5/4.0/6.0mm²
Color: Multicoloured
Material: Tool steel

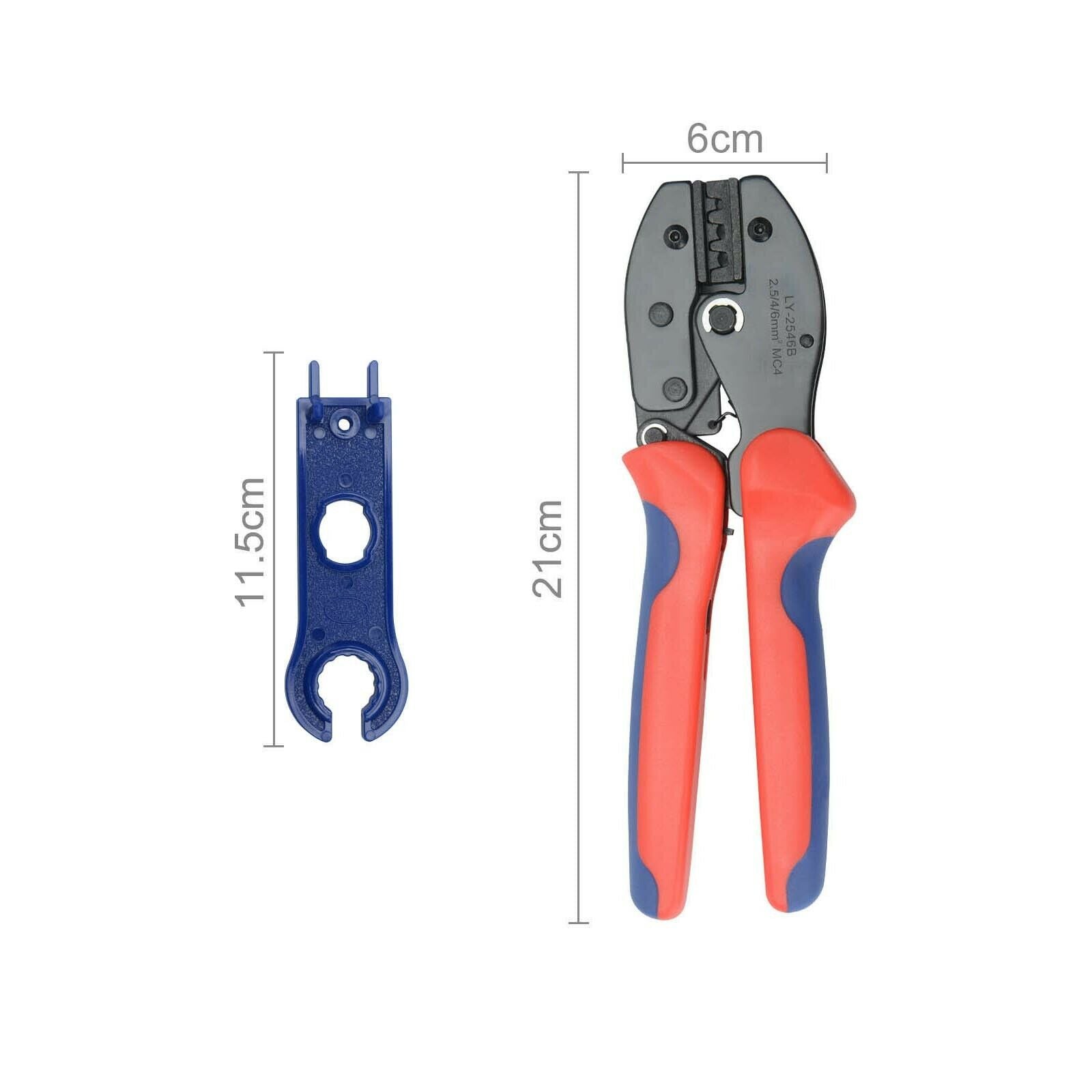

Size: Pliers: 21*6cm, Wrench: 11.5cm, Connector: 10.6cm
Type: Solar Crimper
Model: Crimper Crimping Pliers
AWG: 26-10 AWG
Features: MC4 Wire Crimper+Connectors+Spanners
Wire Crimper Weight: 490g
Wire Crimper Length: 220mm
Rated Current: 22(2.5 mm),30A(4,6 mm)
Protection Degree: IP2X
Withstanding Voltage: 1000 V DC
Contact Resistance: Less than 0.2 Mohms
Insulation material: PPO + PA
Temperature Range: -40 C ~ +90 C
Flame Class: UL94-VO or UL94-5A
Rated Current: 30A
Suitable cable: 2.5mm 2.4mm 2.6mm2(AWG14,AWG12,AWG10)
Pin dimension: 4.0 mm dia.
Waterproof degree: IP67
Withdrawal force: >=50N
Insertion force: <=50N

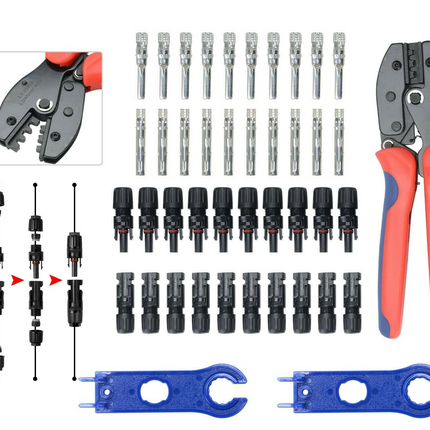

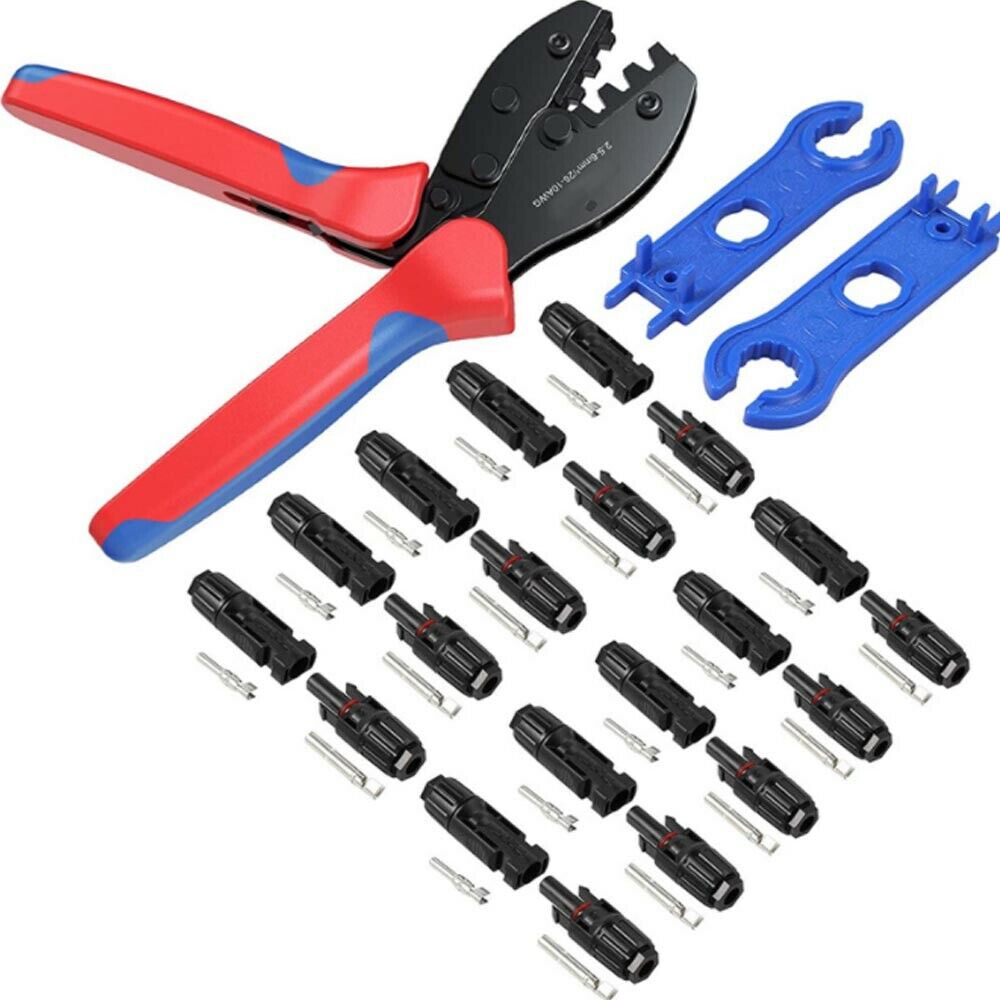

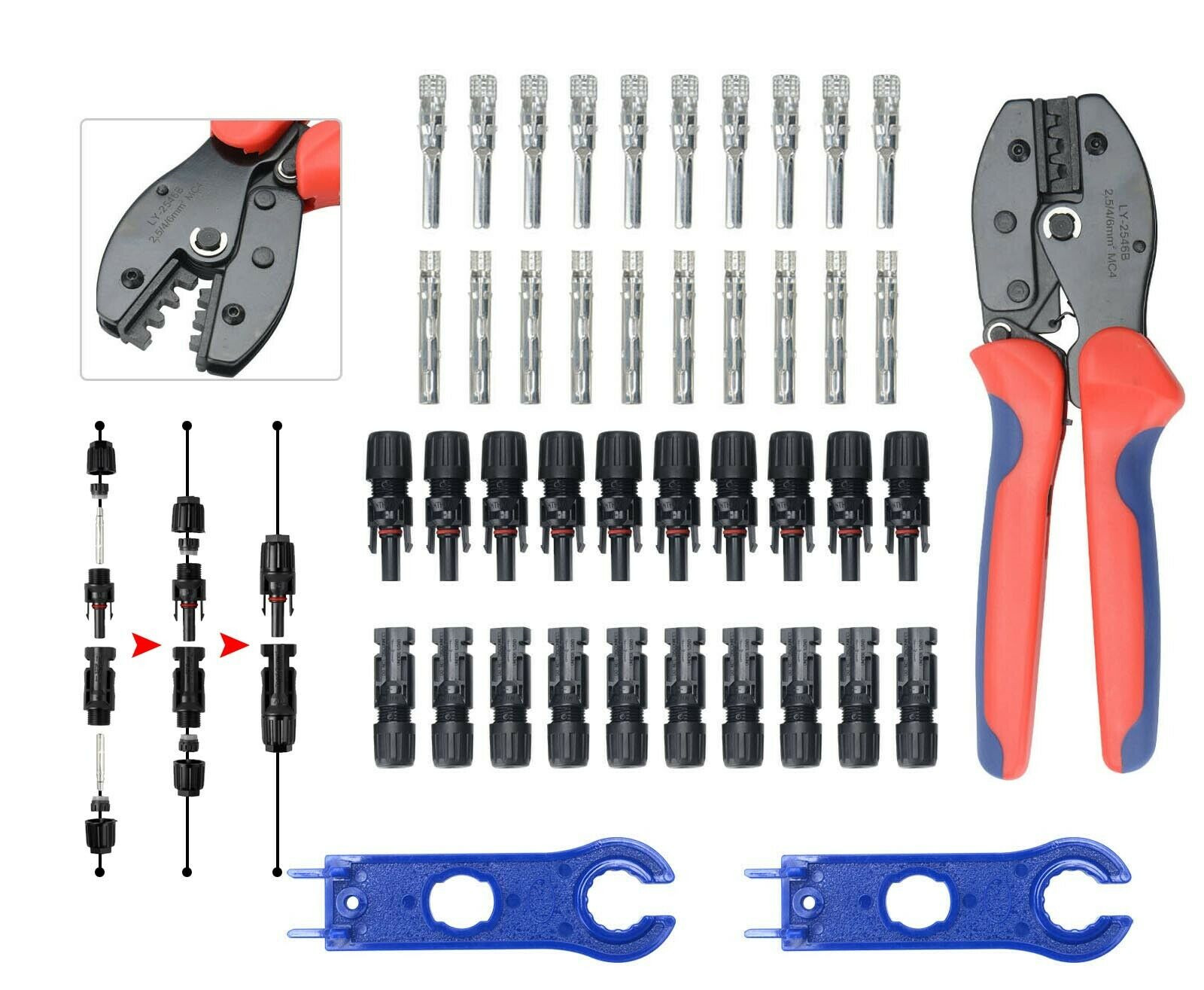

Package Include:
1x MC4 Wire Crimper LY-2546B
10 Pairs MC4 Solar Connectors

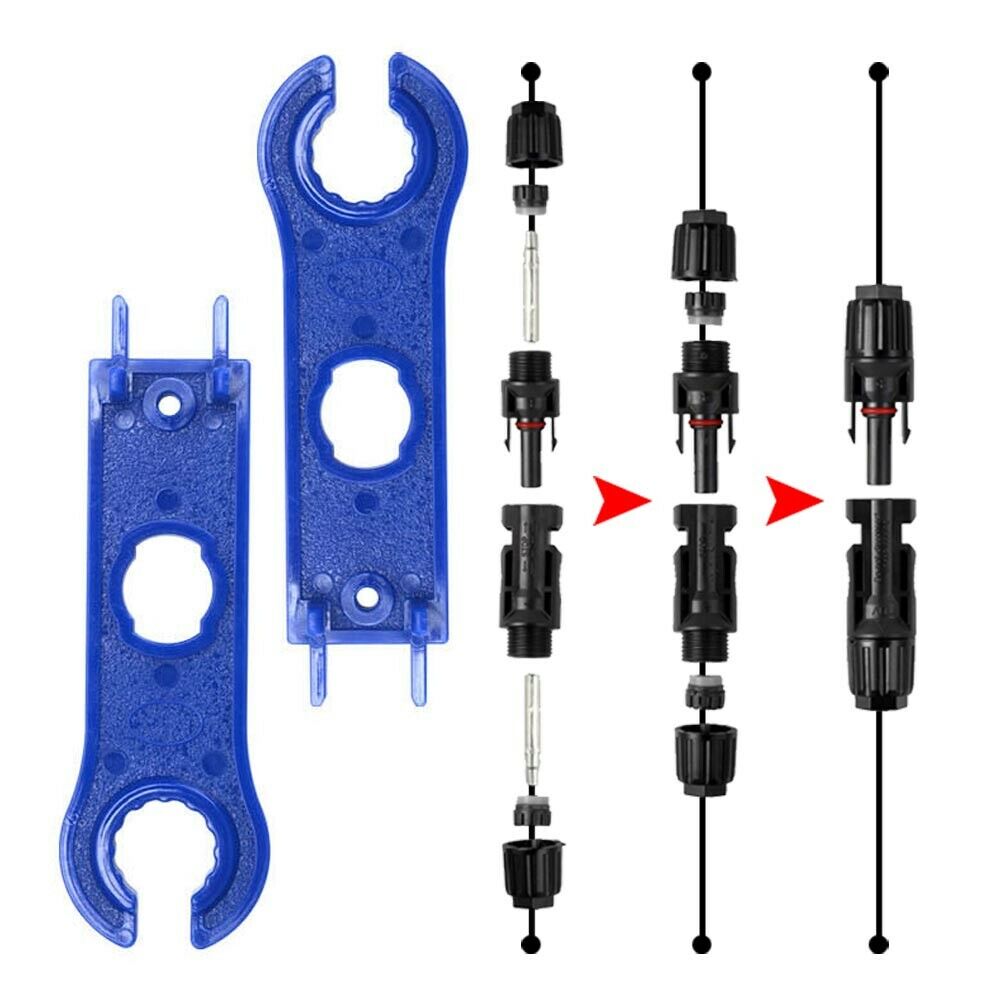

2x MC4 Spanners PV-SCM4
