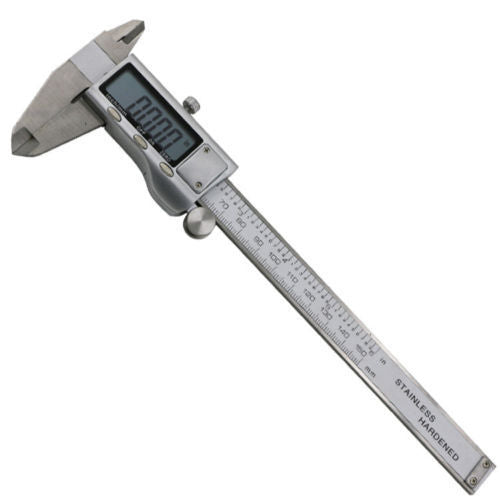

The digital caliper gives a direct reading of the distance measured to high accuracy. They are functionally optimized, with different ways of reading the same result. This caliper comprises a calibrated scale with a fixed jaw, and another jaw, with a pointer, that slides along the scale. The distance between the jaws is then read in different ways depending on your situation to arrive at the most accurate result.
Convenient, portable and a perfect match for any project.
Features
LARGE LCD DISPLAY
Multiple metric scales
Case and mini screw driver provided
Accurate re-calibration suitable for any application

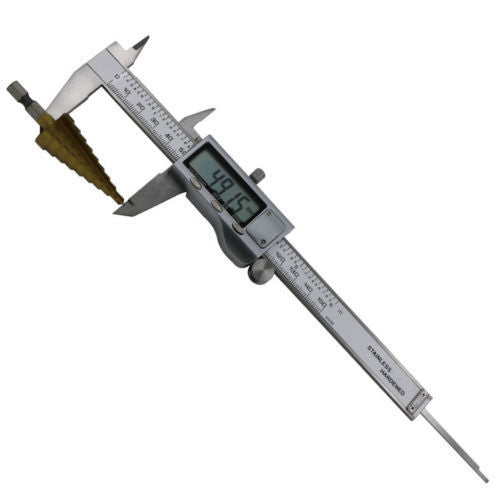

Measures internal, external and depth dimensions
Outside jaws: used to measure external diameter or width of an object
Inside jaws: used to measure internal diameter of an object
Depth probe: used to measure depths of an object or a hole
Main scale: scale marked every mm, in inches and fractions
Vernier scale gives interpolated measurements to 1/10 mm or better and interpolated measurements in fractions of an inch.
Retainer: used to block movable part to allow the easy transferring of a measurement.

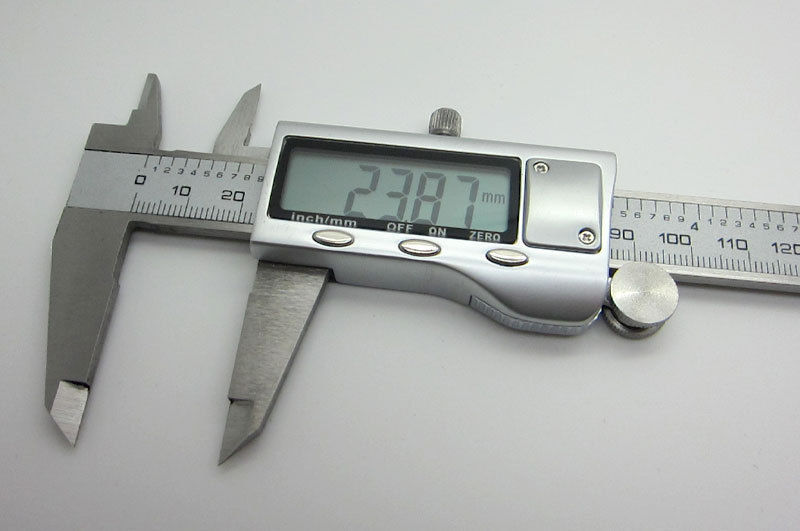

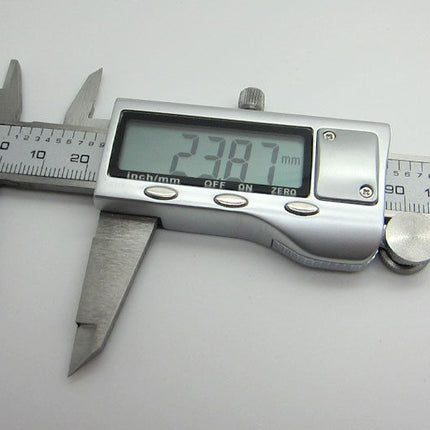

Digital display: For precise data management no matter what awkward position you're in.
Specifications
Measuring range: 0~6"/0~150mm
Resolution: 0.01mm / 0.0005 inch
Accuracy: 0.03mm /0.001ich(>100-200mm)
Power: 1 x 1.5V button Cell
Measuring Speed: 1.5m/s
Conversion between relative and absolute measurement.
Tolerance Zone Setting

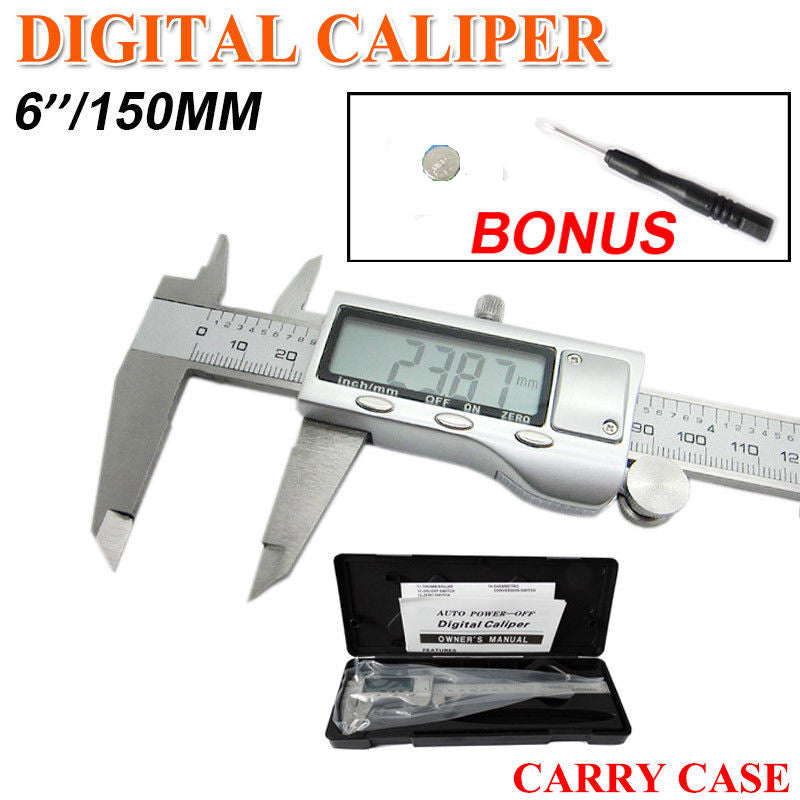

Package
1 x Silver Colour Digital Caliper
1 x Carry Case
1 x Spare Battery
1 x Mini Screwdriver
1 x User Manual
