Description

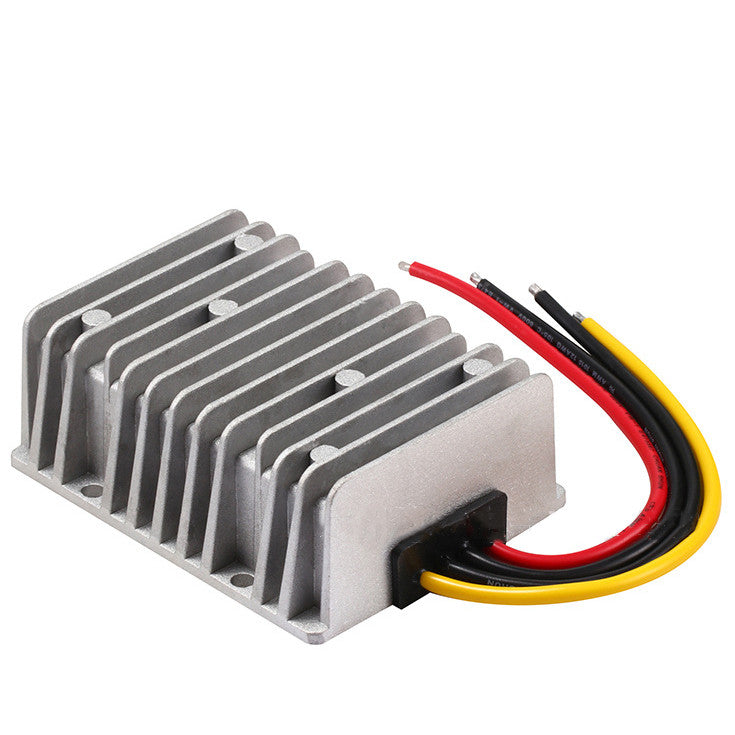

DC/DC Converter Regulator 24V Step Down To 12V 30A 360W
Features:
1. synchronous rectification, conversion rate is 93% with very low heat.
2. auto protect over voltage, over current, over temperature, short circuit, can work in normal condition when restored.
3. input voltage: DC 24V
4. output parameter : DC 12 V +- 0.25V
5. Output power: 30A 360W
6. working temperature: (-40C 80C) when it is more than 40℃,please make lower power, or enhance heat dissipation
7. full load temperature rise: 50C
8. Load regulation: +- 1%
9. voltage regulation rate: +- 2%
10. minimum pressure: 2V
11. Aluminum Shell
Note:
1. Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2. please take with an average load, do not merge,if there are multiple output cables in the output port.
3. you need to pay attention to make the power module cool,if output is up to the maximum current value.
4. in strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment
Package list:
1X DC/DC Converter Regulator
