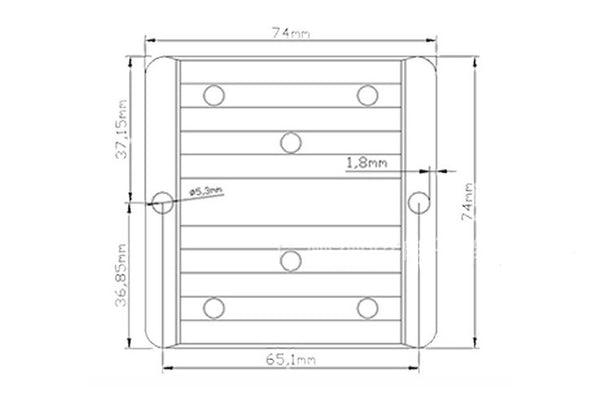

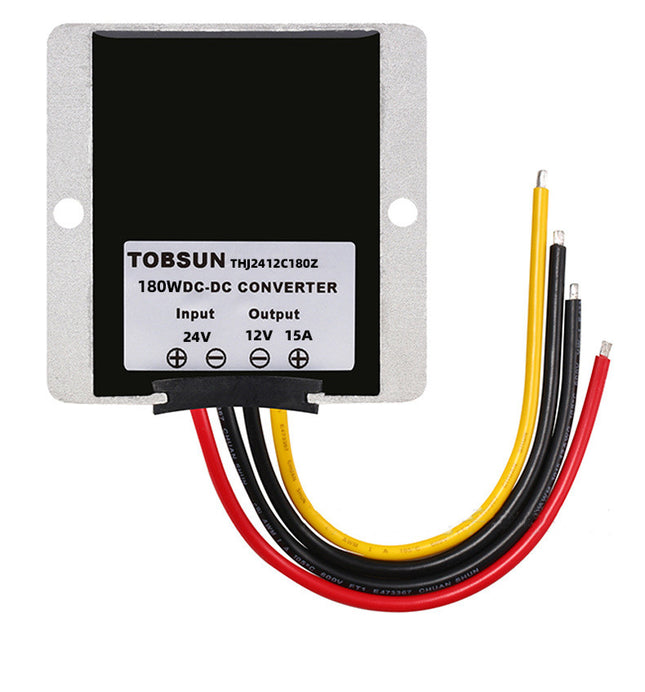

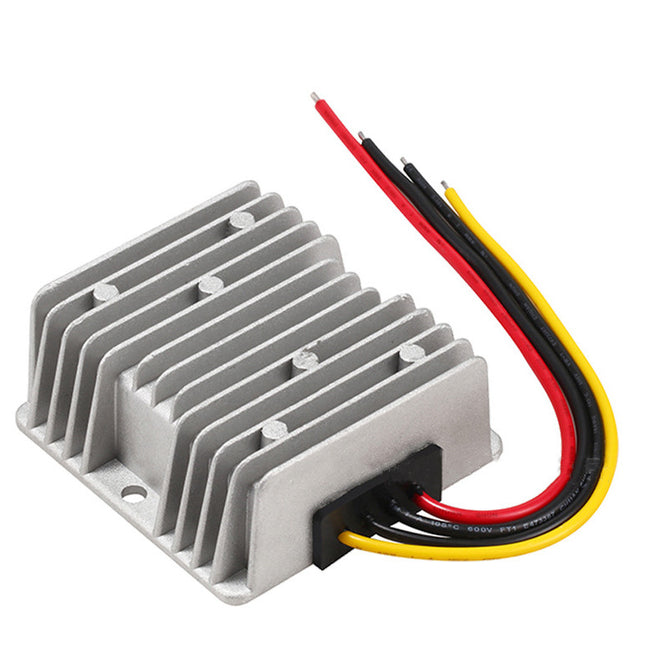

DC/DC Converter Regulator 24V Step Down To 12V 15A 180WFeatures:synchronous rectification, conversion rate is 93% with very low heat.auto protect over voltage, over current, over temperature, short circuit, ,can work in normal condition when restored.input voltage: DC 24V output parameter : DC 12 V Output power: 15A 180W working temperature: (-40 C to 80C) when it is more than 40℃, please make lower power, or enhance heat dissipationfull load temperature rise: 50CLoad regulation: + - 1%voltage regulation rate: + - 2%minimum pressure: 2VAluminum ShellGrade: IP68Shell size: 74x74x32mmNote:1. Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.2. please take with an average load, do not merge,if there are multiple output cables in the output port.3. you need to pay attention to make the power module cool,if output is up to the maximum current value.4. in strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipmentPackage list:1X DC/DC Converter Regulator

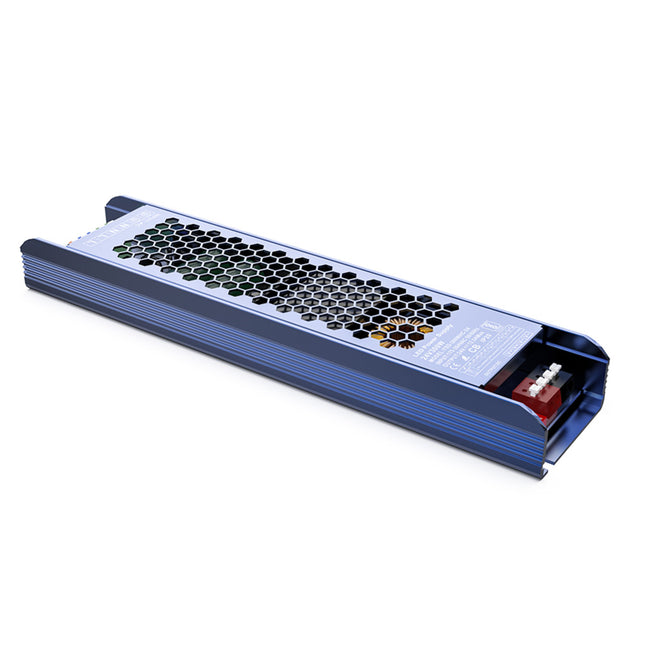

AC 240V to DC 24V 300W LED Driver Power Supply Transformer Adapter For LED Strip
SAA Approved, Sdoc Available
Output voltage: 24VDCOutput сurrent: Max 12.5AOutput power: Max 300WRipple & Noise: ≤240mVStart-up Time (Typ): 500ms/230VAC 800ms/115VACHold Up Time(Typ): 12ms/230VAC 10ms/115VACFrequency: 50/60HzLeakage сurrent: Max. 0.5mAOvertemperature: Protection type: Turn off the output voltage, after the temperature drops, re-energize to restore.
Package includes:1 x Switching Power Supply

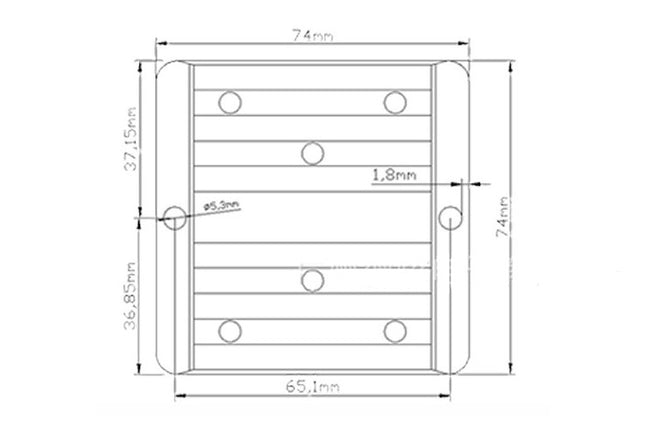

DC/DC Converter Regulator 24V Step Down To 12V 20A 240WFeatures:synchronous rectification, conversion rate is 93% with very low heat.auto protect over voltage, over current, over temperature, short circuit, ,can work in normal condition when restored.input voltage: DC 24V output parameter : DC 12 V Output power: 20A 240W working temperature: (-40 C - 80C) when it is more than 40℃, please make lower power, or enhance heat dissipationfull load temperature rise: 50CLoad regulation: +- 1%voltage regulation rate: +- 2%minimum pressure: 2VAluminum ShellGrade: IP68Shell size: 74x74x32mmNote:1. Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.2. please take with an average load, do not merge,if there are multiple output cables in the output port.3. you need to pay attention to make the power module cool,if output is up to the maximum current value.4. in strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipmentPackage list:1X DC/DC Converter Regulator

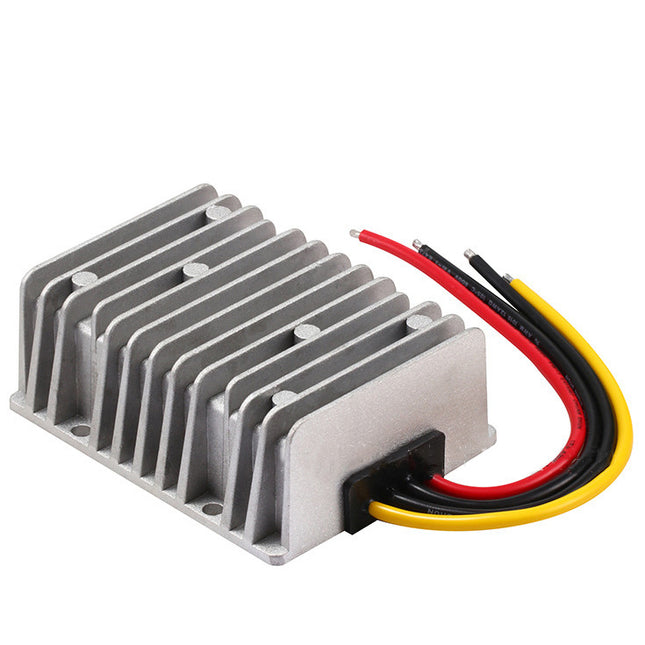

DC/DC Converter Regulator 24V Step Down To 12V 30A 360WFeatures:1. synchronous rectification, conversion rate is 93% with very low heat.2. auto protect over voltage, over current, over temperature, short circuit, can work in normal condition when restored.3. input voltage: DC 24V 4. output parameter : DC 12 V +- 0.25V5. Output power: 30A 360W6. working temperature: (-40C 80C) when it is more than 40℃,please make lower power, or enhance heat dissipation7. full load temperature rise: 50C8. Load regulation: +- 1%9. voltage regulation rate: +- 2%10. minimum pressure: 2V11. Aluminum ShellNote:1. Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.2. please take with an average load, do not merge,if there are multiple output cables in the output port.3. you need to pay attention to make the power module cool,if output is up to the maximum current value.4. in strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipmentPackage list:1X DC/DC Converter Regulator

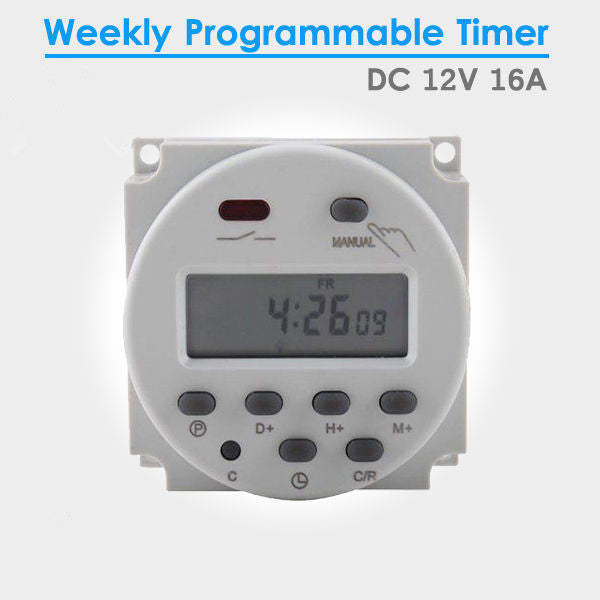

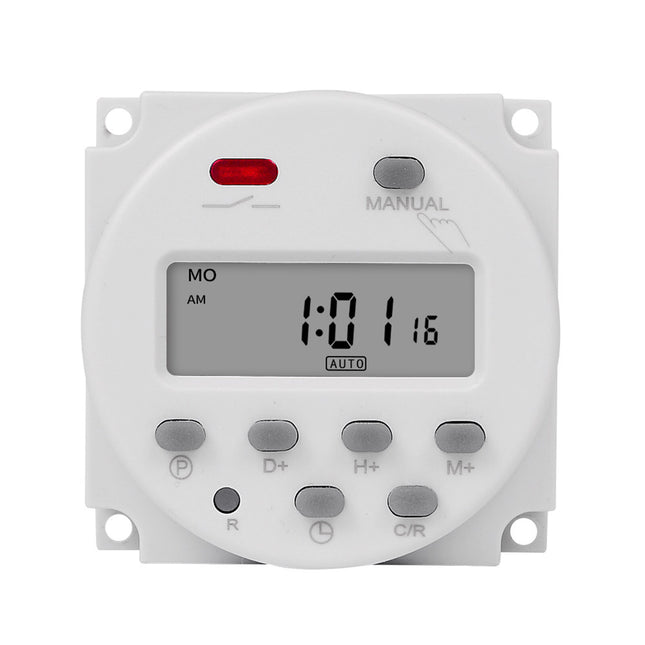

Lcd Day Programmable Timer Time Relay Switch 24 Hour 7 Mini Dc 12V 16A
Features: Panel mounted advanced pre-setting one week before digital electronic timer switch with daily programs repeat programs with 17 on/off setting and manual over-ride auto timer error correction +- 30 sec Specifications: Material: Plastic, Electronic Parts Rated Control Voltage: 12±10% VDC Contact Capacity: 16A 12VDC Power Consumption: 7.5VA(max.) Internal battery: 1.2V/40mA (rechargeable batteries) Hysteresis: <=2 sec/day(25°C) Display: LCD Programmable: 16 times/week or day Minimum Interval: 1 minute Switching Contact: 1 changeover switch Ambient Temperature: -10 to +40°C Mounting Hole Diameter: 3mm / 0.12" Overall Size (Approx.): 62 x 60 x 33mm / 2.4" x 2.36" x 1.3"(L*W*H) Net Weight: 68g Tips: Before starting the program, the timer should be charged for at least 5 minutes as the inbuild battery may be flat at time of delivery; Before setting the program, press the reset button reset to clear the memory for the new instructions; After the program is set, please insert the timer to the plug. Then connect the electric appliance to the timer; The on and off can be set eight times each day, which can be set as follow: First option, Sunday; Second option: from Monday to Friday Third option: Saturday and Sunday(weekend) Fourth option: from Monday to Saturday(working days) Fifth option: Monday,Wednesday,Friday Sixth option: Tuesday,Thursday,Saturday Seventh option: from Monday to Wednesday Eighth option: from Wednesday to SaturdayPackage Includes: 1x Programmable Timer
Circuit Breaker Amp Car Auto Audio Fuse Holder Reset Switch Waterproof 12V-24VDCDescription:100% New with High QualityModels: 300A Voltage: DC 12VSize: 8x5.2x3.8(LWH)Circuit breakers offer critical protection to your system if the system over powers or short circuits the breaker will cut inand save your equipment. No need to replace expensive fuses, the system is resettable via a simple switch also offers safe and instant system shut down.Self-test, manual override and easy to operate with manual reset arm.car Audio circuit breaker, use in place of an inline fuse holder.Prevents excessive current and stops power surges from damaging Amps.Can be mounted on Panel or Firewall.Typically used in trucks, buses, RVs and marine applications; also used in battery charges and DC sound system.High Current Circuit Breaker, to protect to your system.Unique Push Button Reset can also be used as a Kill Switch. Package Include:1*Circuit Breaker
