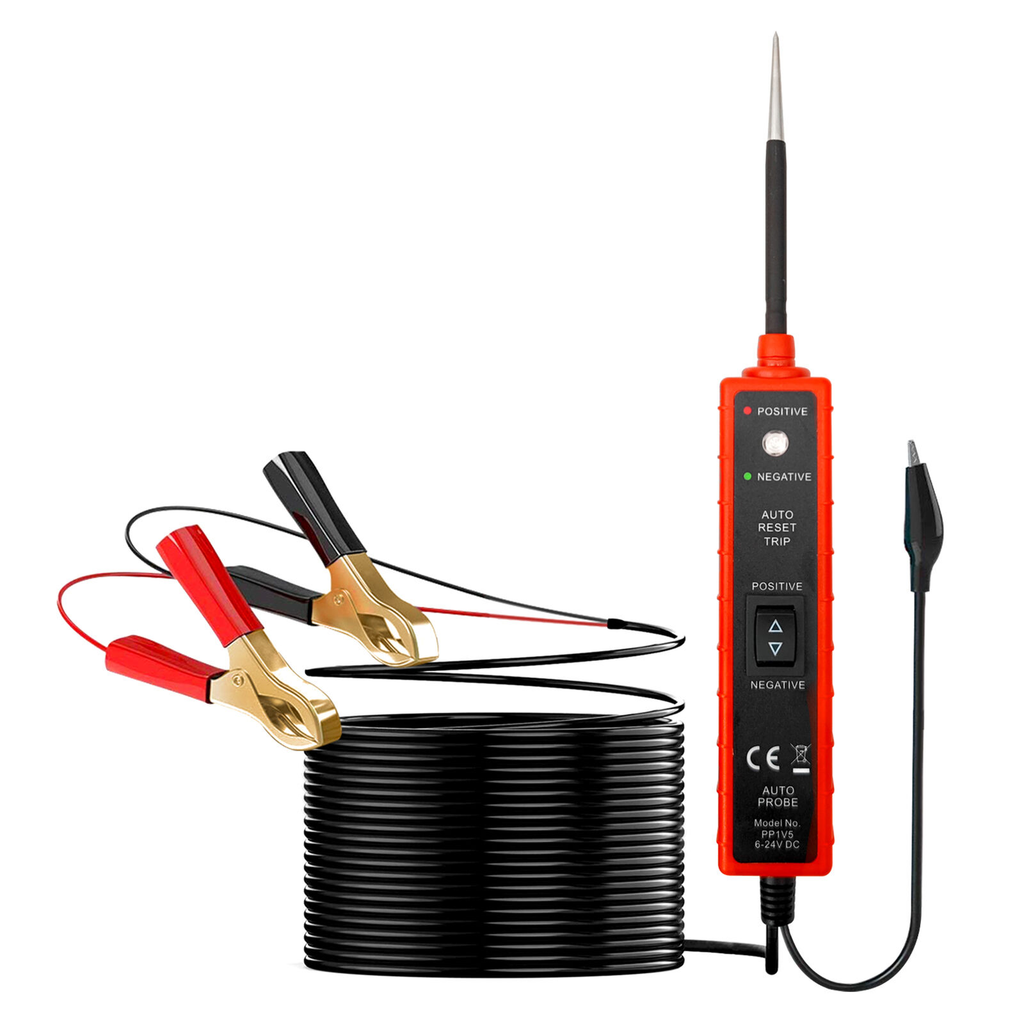

Automotive Electric Circuit Tester Car Electrical System Tester 6-24V D7F3
Features:
Wide range applications: EM285 circuit tester can be used to test continuity, test polarity of a voltage, check lamp, check electric motor, follow and locate short circuits, test for bad ground contacts etc.
Long test lead: The cable length is about 2m which allows you test any electrical system easily.
Short-circuit protection: The unit has short-circuit protection and can test for bad ground contacts instantly.
Easy operation: After a simple hook-up of the unit to the vehicle's battery, automotive technician can conduct a positive or negative battery current to the tip by rocking the power switch forward or backward.
Comprehensive 6-24V DC test kit: Do not use on AC voltage.
Operation Instrcutions:
Unroll the unit's cable
Clamp the red clip to the positive terminal of the vehicle's battery
Clamp the black clip to the negative terminal of the vehicle's battery
Specifications:
Color: red
Operation Voltage: 6-24V DC
Cable Length: 2m
Overload Protection: 8A (When the current exceeds 8A, this item will disconnect the current automatically.)
Size:13x3x3cm
Package Weight: 320g
Package List:
1x Circuit Tester
1x User manual
