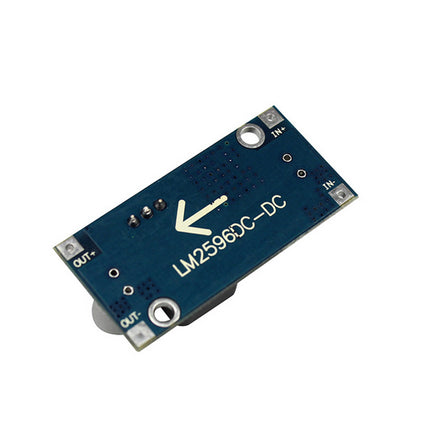

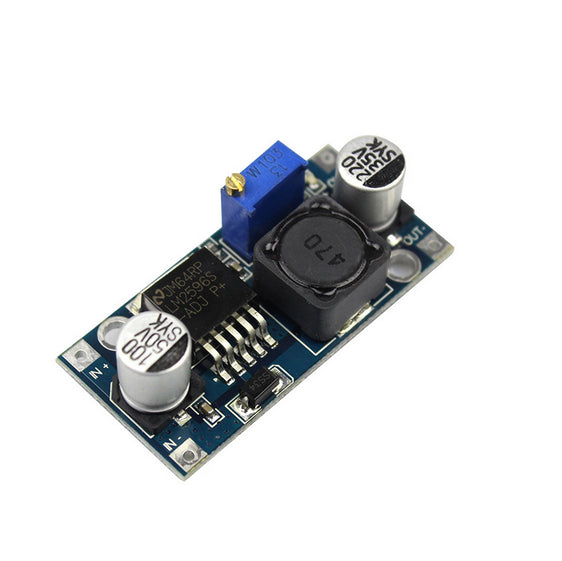

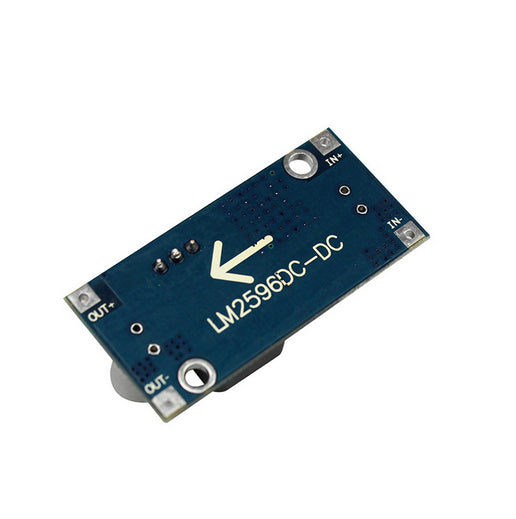

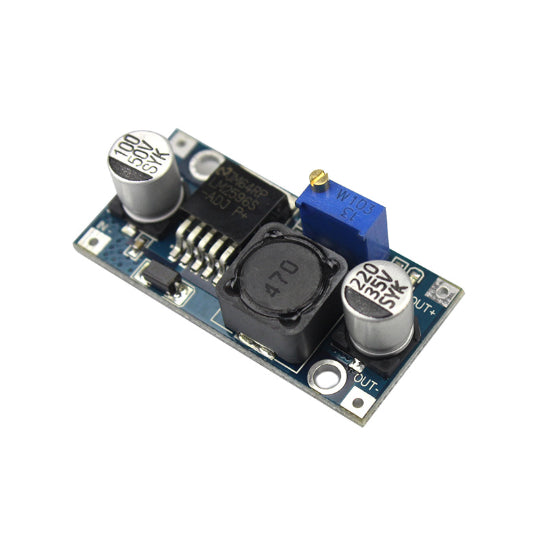

LM2596S DC-DC Adjustable Buck Converter Module Voltage Regular

Description

LM2596S DC-DC Adjustable Buck Converter Module Voltage Regular

Input voltage :4V ~ 35V
The output voltage : 1.23V ~ 30V
Output Current :3A( Max)
Conversion efficiency:92%( MAX )
Output ripple: Switching frequency: 65KHz
Working temperature: -45~ +85C
Size :43mm x 21mm x 14mm(LongxWidthxHeight)

IN+ Input Positive IN- Input Negative

OUT+ Output Positive OUT-Output Negative



Input voltage range: DC 3.2V to 40V (The input voltage should be more than 1.5V higher than the output voltage. Can not be boosted)

Output voltage range: DC 1.25V to 35V voltage continuously adjustable, high efficiency (92%) output current of 3A.

Actual measurement of 12V input, 5V output current 1A when the load regulation rate is less than 1%

Note: This is a buck module, the input voltage should be higher than the output voltage.

Output current greater than 2.5A (or output power greater than 10W) long working hours, please add a heat sink.

Translated with www.DeepL.com/Translator (free version)

LM2596S DC-DC Adjustable Buck Converter Module Voltage Regular

Product form

Out of stock

SKU: PR7475

$7.99 Incl. GST

    • Guaranteed secure & safe checkout.

    Description

    LM2596S DC-DC Adjustable Buck Converter Module Voltage Regular

    Input voltage :4V ~ 35V
    The output voltage : 1.23V ~ 30V
    Output Current :3A( Max)
    Conversion efficiency:92%( MAX )
    Output ripple: Switching frequency: 65KHz
    Working temperature: -45~ +85C
    Size :43mm x 21mm x 14mm(LongxWidthxHeight)

    IN+ Input Positive IN- Input Negative

    OUT+ Output Positive OUT-Output Negative



    Input voltage range: DC 3.2V to 40V (The input voltage should be more than 1.5V higher than the output voltage. Can not be boosted)

    Output voltage range: DC 1.25V to 35V voltage continuously adjustable, high efficiency (92%) output current of 3A.

    Actual measurement of 12V input, 5V output current 1A when the load regulation rate is less than 1%

    Note: This is a buck module, the input voltage should be higher than the output voltage.

    Output current greater than 2.5A (or output power greater than 10W) long working hours, please add a heat sink.

    Translated with www.DeepL.com/Translator (free version)
